Product Description
Model: JD1105

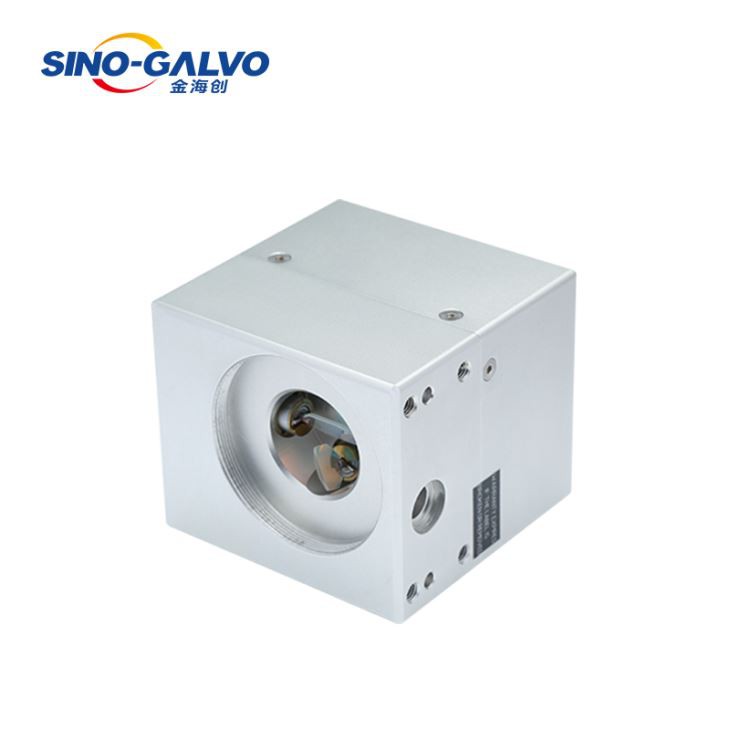

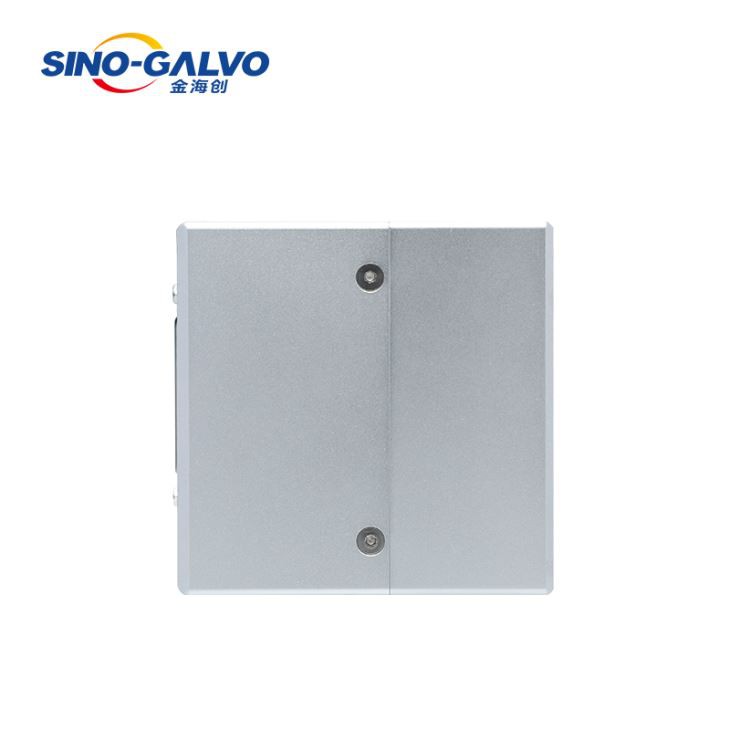

Product Name: small galvanometer scanner
Material of outer holder: Aluminum Alloy
Color of Outer holder: Sliver
Product Size: 80X80X69mm
Gross Weight (Including wire and power supply): 1.6kg
Package Size: 29x13x14cm
Function & Application: Common marking, rotary marking, flying marking and other applications.
Product Advantages
1. Motors are introduced from America, has the advantages of small size, high speed & high precision, good stability, etc.
2. The input aperture is 7 mm.
3. This model has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability.
Parameter Details
Motor Specification of JD1105:
Working Temperature | 0℃-45℃ |
Linearity | 99.9% |
Setting Time | ≤0.3ms |
Scale Drift | <40PPM/℃ |
Zero Drift | <15μRad./℃ |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2.0A |
Peak Current | 15A |
Scan Angle | ±11° |
Storage Temperature | -10 to +60℃ |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 7mm |
Beam Displacement | 9.5mm |
Motor Weight | 13g |
Frequency | ≤1200Hz |
Servo Driver Board Specification:
Input Voltage MAX.RMS | ±15VDC |
Interface Signals Digital | XY2-100 |
Position Signal Input Resistance | 1KΩ±1% |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0-45℃ |
Dimension(L×W×H) | 75×50×28m |
FAQ:
1.Q: Do you have patents or core technology?
A: Yes, for details, please contact our sales.
2.Q: Where have you sold your products?
A: Europe, Americas, Korea, Japan, Russia, Africa, and Asia, etc.
3.Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
4.Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Application:
The application of galvo scanner in LIDAR.
Light Laser Detection and Ranging, LIDAR, is one kind of radar system that assists to detect objectives' position, velocity, etc. by laser beam. With laser as media, pulse laser, reflected by oscillating mirrors inside a galvo scanner, scatters onto objects such as plants, roads and construction on ground. Part of reflected light wave that is received by LIDAR will be taken into account along with laser's height and its scanning angle, thus the coordinate of each light spot cast can be achieved. Continuous laser scanning in this way brings multiple spots' data and accurate 3D images.
