Product Description
Model:SG7310a

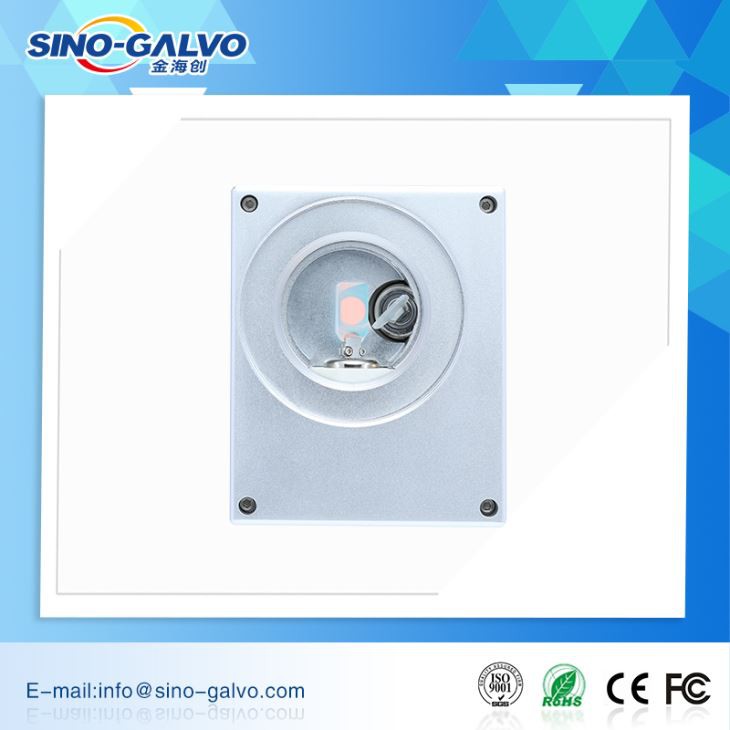

Product Name: galvo scan head
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Silver& Blue
Product Size: 96.5X118.5x94mm
Gross Weight (Including wire and power supply): 3.0kg
Package Size: 29x23x14cm
Function & Application: precision laser marking, laser cutting, laser welding,
Laser drilling, rapid photographing and science researches, etc.
Product Advantages
1. The most cost-effective high speed galvanometer scanner.
2. The input aperture is 10 mm.
3. It has a superior performance of zero drift, higher speed, smaller size, and stronger anti-interference.
Parameter Details
Motor Specification of SG7310a:
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.5ms |
Scale Drift | <40PPM/°C |
Zero Drift | <15μRad./°C |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2A |
Peak Current | 15A(Max) |
Scan Angle | ±11° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10mm |
Beam Displacement | 13.4mm |
Motor Weight | 120g |
Frequency | ≤700Hz |
Servo Driver Board Specification of SG7310a:
Input Voltage | ±15VDC | |
Interface Signals | Digital | XY2-100 |
Analog | ±5V, ±10V | |
Analog Signal Input Resistance | 200K±1% Ω | |
Position Signal Input Resistance | 1K±1% Ω | |
Position Signal Input Scale Factor | 0.33V/° | |
Position Signal Output Scale Factor | 0.33V/° | |
Working Temperature | 0-45°C | |
Dimension(L×W×H) | 75×50×28mm | |
FAQ:
1.Q: Service Time?
A: 2 hours in workday, 12 hours on a day off.
2.Q: Could I visit your factory?
A: Yes, We will warmly welcome you anytime. It's takes about 1 hours from Shanghai International airport to our factory.
3.Q: Where have you sold your products?
A: Europe, Americas, Korea, Japan, Russia, Africa, and Asia, etc.
4.Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Application:
