Product Description
Model: CSG9210

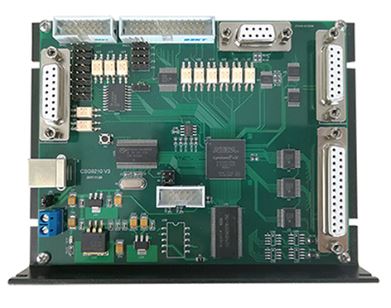

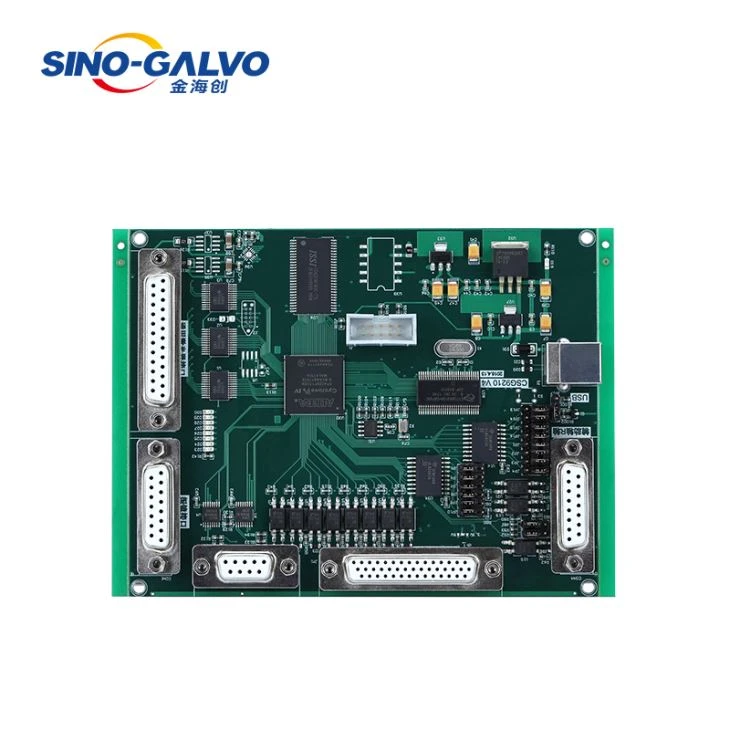

Product Name: laser marking control board
Material of outer holder: Plastic, Silicon/Znse
Color of Outer holder: Green
Product Size: 115.5X131.16mm
Gross Weight: 1kg
Package Size: 26X20X8cm
Function & Application:
Application: Laser marking machine
Product Advantages
The CSG-9210 marking control board is specially developed for marking machines using pulsed fiber lasers. It is connected to a PC using a USB interface. The product adopts ultra-scale FPGA programmable device and high-speed high-precision DA integrated circuit. It has precise processing and positioning speed, and uses all-optical isolation technology. The whole system has low power consumption and good stability. It is specially designed for laser marking machine control.
It has the following features and performance:
1.Single control board can synchronous control 5 sets galvo scanner.
2.Can control the laser signal, PWM signal, fiber TTL signal
3.The laser control signal is output using a DB25 socket and directly connected to the pulsed fiber laser via a 25-pin cable. The galvanometer control signal is a digital signal that can be directly connected to an internationally accepted digital galvanometer.
4. Compatible with USB 2.0, no need for a dongle.
5. Extended axis (stepper motor / servo motor) output: can output two channel direction / pulse signal control stepper motor (or servo motor), can be used for shaft or splicing.
FAQ:
1.Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
2.Q: Are you a trading company or a factory?
A: We are a professional factory for 17 years and our products are very popular both in domestic and abroad.
3.Q: Support flying marking function?
A: Yes.
