Product Description
Model: LC1403-Gun
Product Name: high Speed Laser cleaning Galvo Scanner
Material of outer holder: Aluminum Alloy
Color of Outer holder: Sliver
Product Size: 406.5X 113.7X70mm
Gross Weight: 1.1kg
Package Size: 47X34X24cm
Function & Application: Laser cleaning, rust cleaning
Product Advantages
1) Non-contact cleaning, without damage to parts matrix.
2) Precise cleaning, with accurate location, precise size and selective cleaning.
Parameter Details
Motor Specification:
Working Temperature | 0℃-45℃ |
Linearity | 99.9% |
Setting Time | ≤0.3ms |
Scale Drift | <40PPM/℃ |
Zero Drift | <15μRad./℃ |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2.0A |
Peak Current | 15A |
Maximum Scan Angle | ±15° |
Storage Temperature | -10 to +60℃ |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 7mm |
Beam Displacement | 12.4mm |
Motor Weight | 45g |
Frequency | ≤1200Hz |
System Configuration List：
Name | Specification | Quantity/Set |
Power Supply | ±15V，2A | 1 |
Control Board | V1.0 | 1 |
Screens | 3.5inch（dimension can be customized） | 1 |

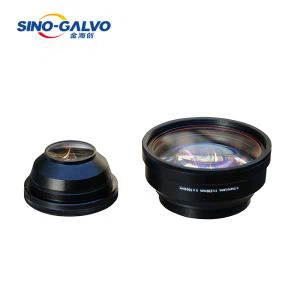

Lens | F=254mm | 1 |
Hand- Piece | LC1403-01 | 1 |
FAQ:
1.Q: How can I connect you after purchased our products?
A: After purchased our products, if you have any questions, please contact our service hot-line: 86-10-62979055/62979755.
2.Q: What kind of materials can process with this machine?
A: 1064nm can process with metal.
3.Q: Could I send some samples to you for test? We want to know the marking quality before order?
A: Of course no problem, welcome to send some samples to us, and we will test it with our machine, then send the marked samples back to you for check.
Application:
Laser cleaning is a brand new high-tech product that is conveniently fixed and operated to fast clean surfaces of objects in any shapes. It features the advantages of manually adjusted focal point and decent cleaning effect.
