Product Description
Model: SGPL-20Q

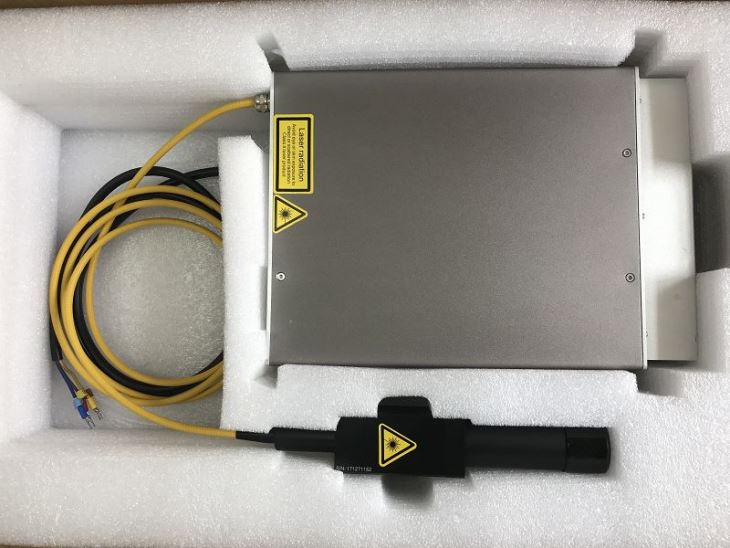

Product Name: high power laser fiber
Material of outer holder: Metal
Color of Outer holder: Blue
Function & Application: Laser marking machine，laser welding machine, laser cutting machine and other applications.
Product Advantages
1. It: is the compact type of high efficiency pulse fiber laser.
2. With good quality beam
3. With high single pulse energy.
4. Widely used in marking, engraving, micromachining, precision drilling, welding, and cutting. It is easy to operate, without maintenance
Parameter Details
PARAMETER | UNIT | SGPL-20Q |
average output pwoer | W | >20 |
center wavelength | nm | 1064 |
pulse width | ns | 80-120 |
frenquency range | KHz | 25-65 |
power stability | % | 5 |
output cable diameter | mm | 6 |
output cable length | m | 2 |
beam diameter | mm | 7 to 8 |
power supply | V | 24 |
working temperature range | ℃ | 0-40 |
cooling mode | air cooling | |
dimensions | mm | 286*210*92 |
weight | Kg | 7.2 |
FAQ:
1.Q: How about the payment?
A: We support T/T, PayPal, Cash, Escrow and Western Union.
2.Q: MOQ?
A: 1 set.
3.Q: What is the wavelength of this laser?
A: 1064nm
