Product Description

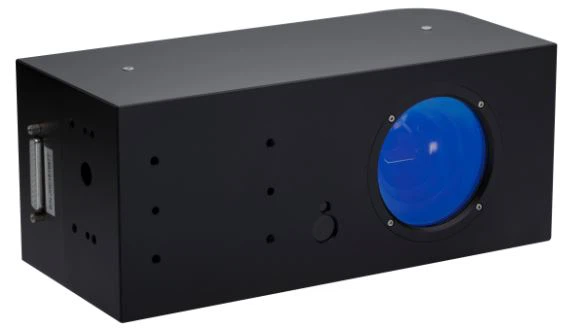

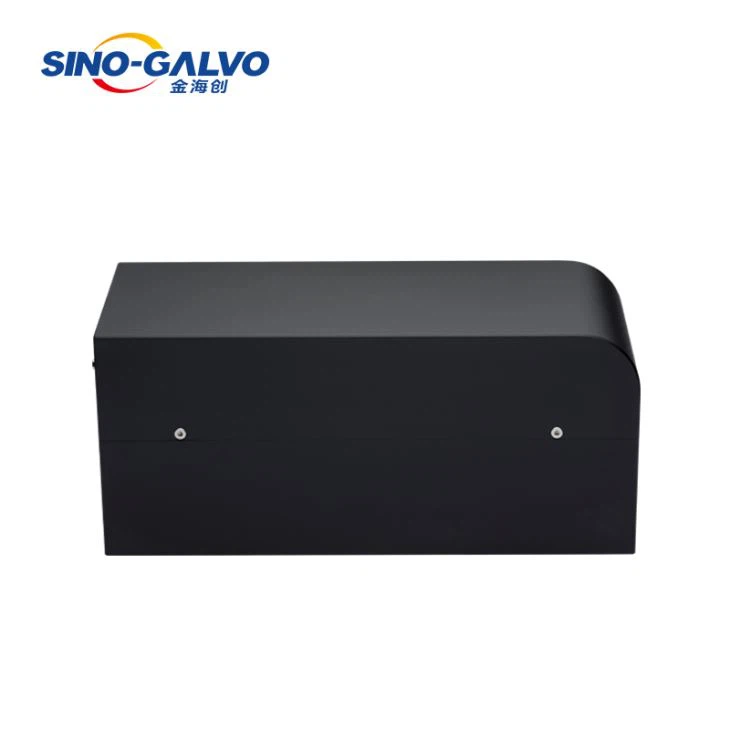

Model:SG7210-3D
Product Name: 3-axis scan head
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Grey
Product Size: 115X110X262mm
Gross Weight: 7.7kg
Package Size: 32X24X46cm
Function & Application: 3D laser marking, laser engraving, laser embossing, laser welding and cutting.
Product Advantages
Working area: 700x700mm, compact size, high positioning accuracy, faster marking speed, and strong anti-interference ability. In the process of dynamic marking, the marking line figures is high precision, distortion free, power uniform, pattern without distortion.
Parameter Details
Motor Specification
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.3ms |
Scale Drift | <40PPM/°C |
Zero Drift | <15μRad./°C |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2A |
Peak Current | 15A(Max) |
Maximum Scan Angle | ±15° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10mm |
Beam Displacement | 13.4mm |
Motor Weight | 220g |
Frequency | ≤1200Hz |
Servo Drive Board Specification
Input Voltage | ±15VDC |
Interface Signals Digital | XY2-100 |
Position Signal Input Resistance | 1K±1% Ω |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0-45℃ |
Dimension(L×W×H) | 75×50×28mm |
