Product Description
Model: fiber laser

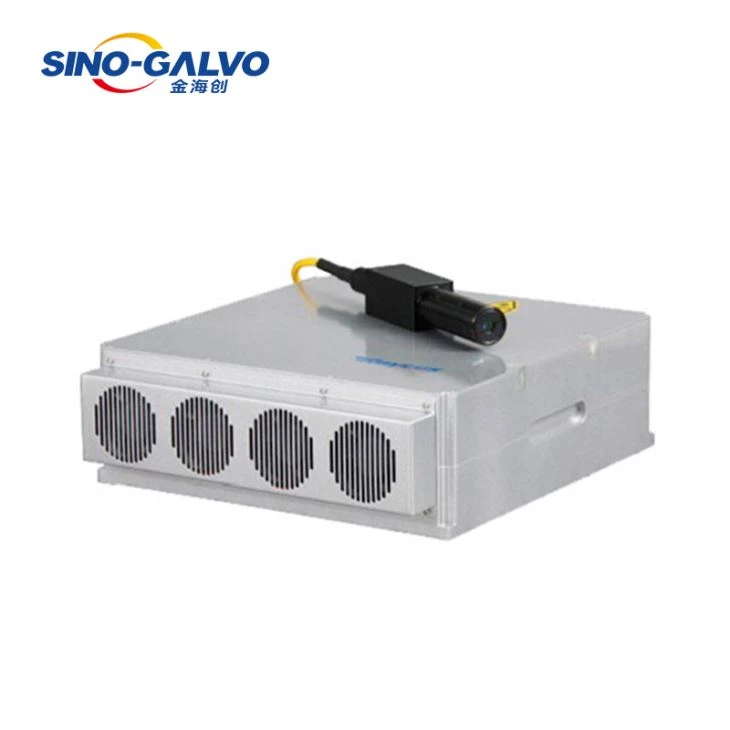

Product Name: Optical fiber laser source
Material of outer holder: Metal
Color of Outer holder: Light Grey
Function & Application: Laser marking machine，laser welding machine, laser cutting machine and other applications.
Optical Fiber Laser Source specifically designed for efficient laser marking. It has high peak power, high single-pulse energy, and spot diameter. Compared to conventional lasers, fiber lasers can increase the conversion efficiency of pump light per watt by more than 10 times. The low power consumption and compact design of efficient pumping and air cooling make the fiber laser suitable for laboratory and industrial applications and can be integrated directly into the user's equipment. The unique electrical isolation design makes this fiber laser have strong anti-interference performance, which is convenient for users to control the connection of the system. It can be widely used in marking, precision machining and graphic engraving of metals and some non-metal, gold, silver, copper, aluminum and stainless steel materials. Especially in the marking application process, the cost is lower and the performance is more stable than the conventional laser.
Product Advantages
1. Compact and lightweight, it is easy to move and embed;
2. Stable and maintenance-free, long service life;
3. The center wavelength is moderate and the beam quality is excellent;
4. Highly integrated, good heat dissipation.
Parameter Details
Model | RFL-P10QE | RFL-P20QE | RFL-P30Q | RFL-P50Q | RFL-P50QB | RFL-P100Q |
Optical Properties | ||||||
Average Output Power | 10 | 20 | 30 | 50 | 50 | 100 |
Central Wavelength | 1064 | |||||
Repetition Frequency Range (Khz) | 20-60 | 20-60 | 30-60 | 50-100 | 50-100 | 20-200 |
Output Power Stability | <3% | <5% | ||||
Output Characteristics | ||||||
Output Beam Diameter(mm) | 7±1 | 6.5±1 | ||||
㎡ | <1.5 | <1.8 | ||||
Polarization State | Random | |||||
Max.Single Pluse Energy(mJ) | 0.5 | 1 | ||||
Delivery Cable Length (m) | 2 Customizable | |||||
Electrical Characteristics | ||||||
Power Supply(VDC) | 24 | |||||
Power Range (%) | 10-100 | |||||
Power Consumption (W) | 120 | 170 | 240 | 340 | 340 | 450 |
Other Characteristics | ||||||
Dimensions(mm) | 391x260x120 | 396x360x123 | 391x260x120 | 396x360x123 | ||
Cooling | Forced Air | |||||
Operating Temperature(℃) | 0-40 | |||||
FAQ:
1.Q: Can we use your brand on the machine you ordered?
A: Yes, you can.
2.Q: What is your guarantee time?
A: 18 months for galvo scanner, 12 months for others.
1.Q: Delivery time?
A: Within 7 days after receiving your payment.
