Product Description

Model: fiber laser

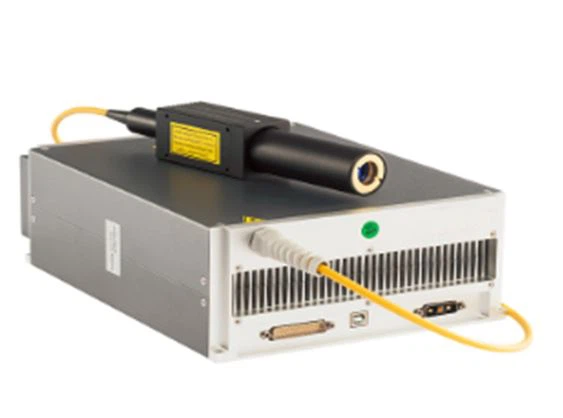

Product Name: fiber laser 20w
Material of outer holder: Metal
Color of Outer holder: Light Grey
Function & Application: Laser marking machine,laser welding machine, laser cutting machine and other applications.
Product Advantages
1. It: is the compact type of high efficiency pulse fiber laser.
2. With good quality beam
3. With high single pulse energy.
4. Widely used in marking, engraving, micromachining, precision drilling, welding, and cutting. It is easy to operate, without maintenance
Parameter Details
Model | RFL-P10QE | RFL-P20QE | RFL-P30Q | RFL-P50Q | RFL-P50QB | RFL-P100Q |
Optical Properties | ||||||
Average Output Power | 10 | 20 | 30 | 50 | 50 | 100 |
Central Wavelength | 1064 | |||||
Repetition Frequency Range (Khz) | 20-60 | 20-60 | 30-60 | 50-100 | 50-100 | 20-200 |
Output Power Stability | <3% | <5% | ||||
Output Characteristics | ||||||
Output Beam Diameter(mm) | 7±1 | 6.5±1 | ||||
㎡ | <1.5 | <1.8 | ||||
Polarization State | Random | |||||
Max.Single Pluse Energy(mJ) | 0.5 | 1 | ||||
Delivery Cable Length (m) | 2 Customizable | |||||
Electrical Characteristics | ||||||
Power Supply(VDC) | 24 | |||||
Power Range (%) | 10-100 | |||||
Power Consumption (W) | 120 | 170 | 240 | 340 | 340 | 450 |
Other Characteristics | ||||||
Dimensions(mm) | 391x260x120 | 396x360x123 | 391x260x120 | 396x360x123 | ||
Cooling | Forced Air | |||||
Operating Temperature(℃) | 0-40 | |||||
FAQ
1.Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2.Q: Are you a trading company or a factory?
A: We are a professional factory for 17 years and our products are very popular both in domestic and abroad.
3.Q:Do you have branch overseas?
A:Yes, we have established branch in South Korea, India, Taiwan and Italy.
Hot Tags: fiber laser 20W, China, suppliers, manufacturers, customized, low price, application of
