Product Description
Model:SG2207-3D
Product Name: Small laser Galvo Scanner
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Grey
Product Size: 115X110X262mm
Gross Weight: 7.7kg
Package Size: 34X24X46cm
Function & Application: 3D laser marking, laser engraving, laser embossing, laser welding and cutting.
Product Advantages
700x700mm working area
Front lens, Smaller size, higher speed, zero drift and high precision 3D engraving machine.
Parameter Details
Motor Specification
Working Temperature | 0℃-45℃ |
Linearity | 99.9% |
Setting Time | ≤0.35ms |
Scale Drift | <40PPM/℃ |
Zero Drift | <15μRad./℃ |
Long-term Drift over 8 hours | <0.5mRad |
RMS Current | 2.0A |
Peak Current | 15A |
Maximum Scan Angle | ±15° |
Storage Temperature | -10 to +60℃ |
Resolution | 12μRad |
Repeatability | 8μRad |
Input Aperture | 10mm |
Beam Displacement | 13.4mm |
Motor Weight | 220g |
Frequency | ≤1200Hz |
Servo Driver Board Specification
Input Voltage | ±24VDC |
Interface Signals | Digital XY2-100 |
Position Signal Input Resistance | 1KΩ±1% |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0℃-45℃ |
Dimension(L×W×H) | 75×50×28mm |
FAQ:
1.Q: Could I send some samples to you for test? We want to know the marking quality before order?
A: Of course no problem, welcome to send some samples to us, and we will test it with our machine, then send the marked samples back to you for check.
2.Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is an English manual also a guide video that show you how to set up and use machine. We also offer online service with e-mail/phone/Skype/ Trade manager online service and team viewer remote help.
3.Q: Do you have branch overseas?
A: Yes, we have established branch in South Korea, India, Taiwan and Italy.

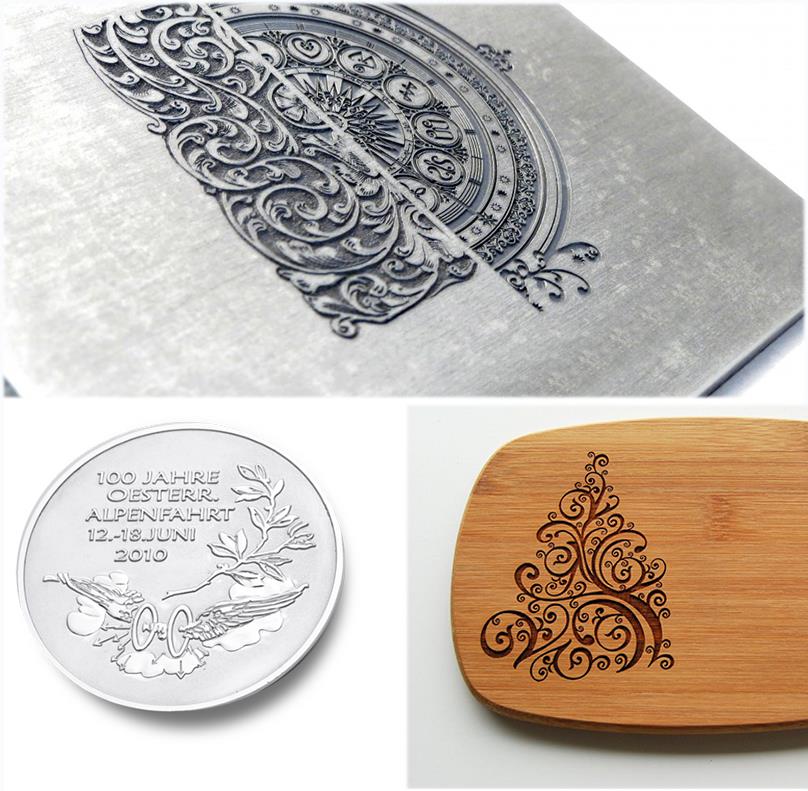

Application:
