Name: China Customized 3D Fiber Laser Marking And Engraving Machine Suppliers and Manufacturers - Low Price 3D Fiber Laser Marking And Engraving Machine - SINO-GALVO
Brand: Sino-Galvo
SKU: 133880747

Galvanometer Parameters

FL7210-3D-300
Laser Type		1064nm fiber laser source
Printing Field (Adjustable)		200200mm~300300mm
Input Beam Size		6mm~7.5mm
X&Y Axes Mirrors Aperture Size		10mm
Speed
Marking Speed		6000mm/s
Positioning Speed		12000mm/s
Writing Speed		600cps
Step Response Time(1% of full scale)		210us
Step Response Time(10% of full scale)		710us
Tracking Error Time		≤138us
Precision and Error
Linearity		99.90%
Repeatability (RMS)		＜8μRad
Gain Error		＜5mRad
Zero Offset		＜5mRad
Long-term Drift Over 8 Hours		＜0.5mRad
Scale Drift		＜40PPM/℃
Zero Drift		＜15μRad/℃
Power and Signal
Input Voltage		±24VDC
Rated Current		4A
Interface Signal	Digital	XY2-100
Machinery Scan Angle		±12.5°
Working Current, Temperature, Dimension
Working Temperature		0℃~45℃
Storage Temperature		-10℃~60℃
Galvanometer Scanner Dimension		262x110x116mm (LxWxH)
Galvanometer Scanner Weight		≈4.31Kg

Packaging & Delivery

Packaging Details
Each 3D Fiber Laser Marking And Engraving Machine is packed in a hard paper box. Packing can be as your request.

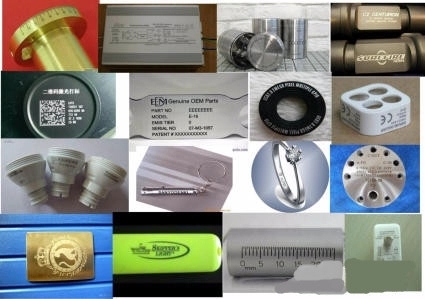

Picture Example:
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 28 To be negotiated

Why Choose Us
