Product Description

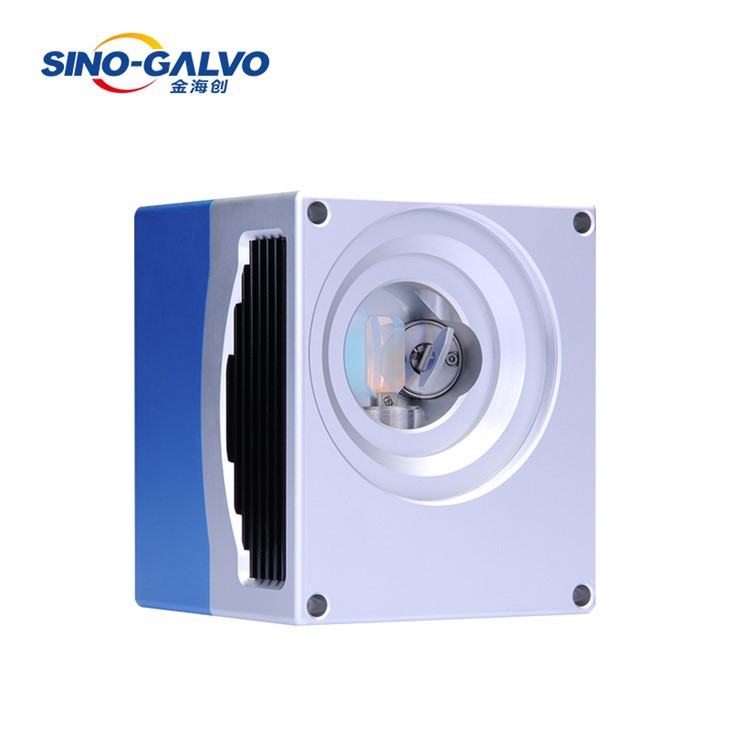

Sino-Galvo Tech. specializes in optical galvanometer scanner and its control system R&D, production and sales. SG2203 the input aperture is 10mm (compatible with 10600nm 1064nm 532nm 445nm 355nm),uses digital driver, fully self-developed driver/control algorithm/ motor. Strong interference resist performance, high speed, high precision; suitable for high-precision laser marking engraving, micromaching, processing on-the-fly.,etc.
Housing Dimension Drawing
Logistics Information
Length and width of each item:29CM*23CM*14CM/Set/Sets
Gross weight of each item:2.9KG / Set/Sets
Speed | |
Marking Speed(1) | 8000mm/s |
Writing Speed(2) | 540cps |
Step Response Time(1% of full scale) | ＜400us |
Step Response Time(10% of full scale) | ＜1000us |
Tracking Error Time | ≤160us |
Precision and Error | |
Linearity | 99.9% |
Repeatability (RMS) | ＜8μRad |
Gain Error | ＜5mRad |
Zero Offset | ＜5mRad |
Long-term Drift Over 8 Hours | ＜0.5mRad |
Scale Drift | ＜40PPM/℃ |
Zero Drift | ＜15μRad/℃ |
Wavelength(3) | 10600nm/1064nm/355nm |
Power and Signal | |
Input Voltage | ±15VDC |
Rated Current | 2A |
Interface Signal | Digital XY2-100 |
Analog | ±5V |
Machinery Scan Angle(4) | ±11° |
Working Current, Temperature, Dimension | |
Working Temperature | 0℃--45℃ |
Storage Temperature | -10℃--60℃ |
Aperture | 10mm |
Galvanometer Scanner Dimension (LxWxH) | 118.5x96.5x94mm |
Galvanometer Scanner Weight | ≈1.65Kg |
Note: The above data are tested after 30 min warm-up
(1) With F-theta objective, F=160mm, marking 2mm height single character
(2) With F-theta objective, F=160mm, marking 1mm height single character per second
(3) Special wavelength coating film can be customized
(4) If any special requirement, customization is available. Factory default value is ±11°
