Product Descrption
High cleaning surface cleanliness, can remove the resin, oil contamination, stains, dirt, rust, coating, plating and paint on the surface of different shape objects; Mainly used in mold processing, automobile manufacturing, shipbuilding industry, food processing, sewage treatment, rubber tires and petrochemical industries.
Runing Environment
The running environment of this product is as follows:
Operating voltage: single phase 220V ± 10%, 50/60Hz alternating current
Working Temperature Conditions: 0~40
Working Humidity Conditions: ≤ 80%RH
System power: 60W
Laser Cleaning Machine Parameters
| Laser Power | 60W |
| Clean Length | 1mm-100mm |
| Cleaning Speed | 1mm-1000mm |
| Focus Length | F=254±25mm/500±25mm |
| Drift for Long Time | <0.5mRad |
| The Max Scan Angle | ±15° |
| Repeat Accuracy | 8μRad |
| Cooling | Air Cooling |
| Cable Length | 3MTR |
| Dimension | 670x436x865mm |
| Weight | 47±0.1KG |
| Working Temperature | 0℃ to +45℃ |
| Storage Temperature | -10℃ to +60℃ |
| Clean Head Weight | 2.5±0.1KG |
| Warranty | 2 years |
Product Features:

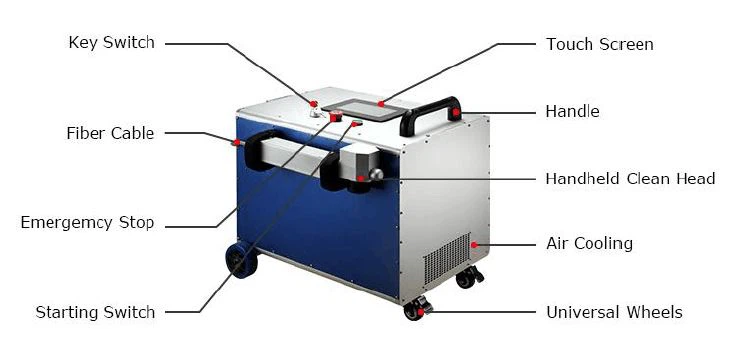

●The hand gun, featured with compact structure and light weight, is convenient for handling and transportation.
● Non-contact cleaning, protecting component base against damage.
Requiring no chemical cleaning solution or consumables, the equipment can realize long-term continuous service and easy upgrade and daily maintenance.
● Extremely high cleaning efficiency and time saving.
● Mechanized usage without redundant setting of parameters, facilitating the use.
●With precise cleaning function, selective cleaning of precise position and precise dimension can be realized.
●Simple operation: after energization, automated cleaning can be realized via hand-held operation or manipulator.Stable laser cleaning system, requiring almost no maintenance.
Cleaning Ability
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubber mold residue cleaning.
Sino-Galvo Tech. specializes in optical galvanometer scanner and its control system’s R&D, production and sales. Our self-developed laser cleaning system has no damage to the substrate, can meet long-time operation of high power laser cleaning, and can be matched with various types of lasers.
