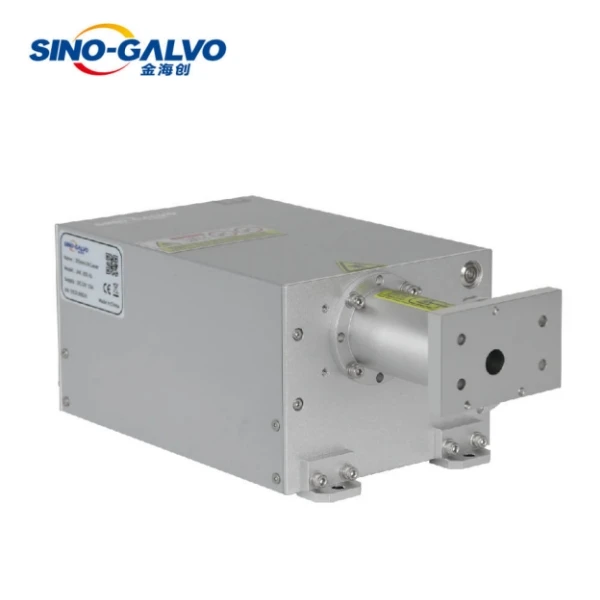

Sino Galvo 355nm UV Laser Source with Water Cooling
Sino Galvo solid‑state UV laser with water cooling tech for photochemical cold processing. Minimal heat‑affected zone, micron‑level fine marking for plastic, glass, ceramic, PCB & metal surfaces. Compact for production‑line integration, not for deep metal ablation.
We offer 3 models with laser output power ranging from 5 to 15 watts,can meet the needs of various industrial manufacturing.Please feel free tp contact us!
Stability
Precision
quality
Solution
355nm wavelength
All-solid-state structure,
without gas consumables
5-15w power output
Three output power options, ranging from 5 to 15 watts.
Beam Quality M² ≤1.2
High-quality beam quality,the focused light spot is extremely small and highly concentrated
Water Cooling
Suitable for 7×24-hour uninterrupted operation of the assembly line
Specifications
|
Optical Parameters |
||||
|
Model Name |
JHC-355-5L/W |
JHC-355-10W |
JHC-355-15W |
Note |
|
Central Wavelength (nm) |
355 |
|||
|
Output Power (W) |
＞5.5 |
＞11 |
＞16 |
@50kHz |
|
Repetition Rate (KHz) |
30~200 |
Strictly within range |
||
|
Pulse Width Range (ns) |
<20 |
@50kHz |
||
|
Pulse Stability |
＜3% |
|||
|
Power Stability |
＜3% |
|||
|
Polarization State |
Horizontal |
|||
|
Polarization Degree |
＞100:1 |
|||
|
Spatial Mode |
TEM00 |
|||
|
Beam Ellipticity |
>90% |
|||
|
Beam Quality M² |
≤1.2 |
|||
|
Divergence Angle (mrad) |
＜2 |
|||
|
Beam Diameter (mm) |
0.6~1 |
Unexpanded |
||
|
Built-in Beam Expander |
12X |
Customization |
||
|
Electrical Performance |
||||
|
Working voltage (VDC) |
12 |
15 |
24 |
|
|
Working current (A) |
<13 |
<24 |
<15 |
|
|
Power consumption (W) |
<150 |
<350 |
<350 |
|
|
Mechanical Performance |
||||
|
Control Interface |
DB25&RS232 |
|||
|
Cooling Method |
Water Cooled |
|||
|
Dimension L×W×H (mm) |
239*140*111 |
|||
|
Weight (kg) |
5.2 |
|||
General Specifications
|
Parameter |
Min |
Max |
|
Operating Temperature (℃) |
10 |
35 |
|
Operating Humidity (%) |
30 |
55 |
|
Water Temperature (℃) |
23 |
25 |
|
Cooling Water |
Deionized Water or Distilled Water |
|
Power and Pulse Width Values at Different Frequencies：
|
JHC-355-5L/W |
|||
|
Pulse Repetition Frequency (kHz) |
Average Power (W) |
Pulse Width (ns) |
Pulse Energy (mJ) |
|
50 |
6.1 |
18.5 |
0.12 |
|
60 |
6.1 |
19 |
0.10 |
|
70 |
5.8 |
20 |
0.08 |
|
80 |
5.4 |
21.8 |
0.07 |
|
90 |
5.0 |
22.8 |
0.06 |
|
100 |
4.5 |
24.4 |
0.05 |
|
120 |
3.8 |
26.7 |
0.03 |
|
150 |
2.9 |
29.6 |
0.02 |
|
JHC-355-10W |
|||
|
Pulse Repetition Frequency (kHz) |
Average Power (W) |
Pulse Width (ns) |
Pulse Energy (mJ) |
|
30 |
6.1 |
9.8 |
0.20 |
|
40 |
11.5 |
12.6 |
0.29 |
|
50 |
12.4 |
14.3 |
0.25 |
|
60 |
12 |
15.4 |
0.20 |
|
70 |
11.3 |
16.5 |
0.16 |
|
80 |
10.6 |
18 |
0.13 |
|
90 |
10.1 |
20.1 |
0.11 |
|
100 |
9.6 |
21.2 |
0.10 |
|
JHC-355-15W |
|||
|
Pulse Repetition Frequency (kHz) |
Average Power (W) |
Pulse Width (ns) |
Pulse Energy (mJ) |
|
30 |
7.6 |
11.4 |
0.25 |
|
40 |
12.3 |
13 |
0.30 |
|
50 |
16.2 |
16.5 |
0.32 |
|
60 |
17 |
18.5 |
0.28 |
|
70 |
17.1 |
19 |
0.24 |
|
80 |
16.5 |
20.5 |
0.20 |
|
90 |
15.5 |
22 |
0.17 |
|
100 |
14.8 |
22.5 |
0.15 |
