Product Description

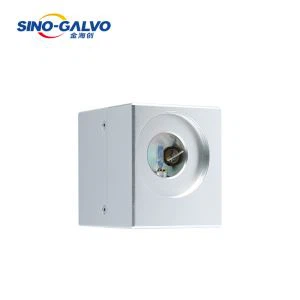

SG7110 examine heads offer minimized and adaptable superior – giving adaptable ease of use in almost all modern laser materials-preparing applications. Additionally, SG7110 filter frameworks are particularly cost-proficient. A scope of output sets out toward an assorted variety client necessities.
Product Advantages
1. Lower temperature and stronger anti-interference .
2. An economic Galvanometer Scanner.
3. It mainly used in high speed and marking on the fly.
4. It has a superior performance of zero drift, higher speed, lower temperature and stronger anti-interference.
Parameter Details
Motor Specification :
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.5ms |
Scale Drift | <40PPM/°C |
Zero Drift | <15μRad./°C |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2A |
Peak Current | 15A(Max) |
Scan Angle | ±11° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10mm |
Beam Displacement | 13.4mm |
Motor Weight | 120g |
Frequency | ≤700Hz |
Servo Driver Board Specification :
Input Voltage | ±15VDC | |
Interface Signals | Digital | XY2-100 |
Analog | ±5V, ±10V | |
Analog Signal Input Resistance | 200K±1% Ω | |
Position Signal Input Resistance | 1K±1% Ω | |
Position Signal Input Scale Factor | 0.33V/° | |
Position Signal Output Scale Factor | 0.33V/° | |
Working Temperature | 0-45°C | |
Dimension(L×W×H) | 75×50×28mm | |
FAQ:
1.Q: Why choose us?
A: The world's largest production base of high-performance galvanometer scanners;
Achieve No.1 of global sales, annual sales reaches more than 70,000 units;
Have the most complete range of scan head, more than 30 models;
Own 15 patent certificates and complete independent intellectual property rights;
Galvo scanners and control system realized personalized customization in different fields.
2.Q: What I need to do when the laser module suffer trouble?
A: Make sure all the wires be connection well and keep your lens and mirrors be clean, then talk details to us.
3.Q: Good Service?
A: We can supply you from design, polishing to coating
4.Q: MOQ?
A: 1 set
5.Q: Warranty time?
A: 18 months for galvo scanner, 12 months for others.
Application:
Lasers can evacuate almost any sort of strong material, including solidified steel, hard metal, pottery and composites, paying little mind to material properties, for example, electrical conductivity or hardness. Also, on the grounds that the expulsion technique is contactless and power free, even delicate materials, for example, glass and polymer film can be handled with low deformities.
At the point when executed as sweep arrangements, laser penetrating offers exceptional adaptability and robotization capacities, just as wonderful scaling down potential by means of spot sizes customizable down to unimportant micrometers. Ultra-fine drill gaps are attainable in the sub-millimeter run (for example trepanning for breadths ≥ 40 µm with high perspective proportions, or percussion penetrating for distances across ≥ 20 µm) with extremely sharp edges at bore entrance/leave gaps and short procedure times.
