Product Description

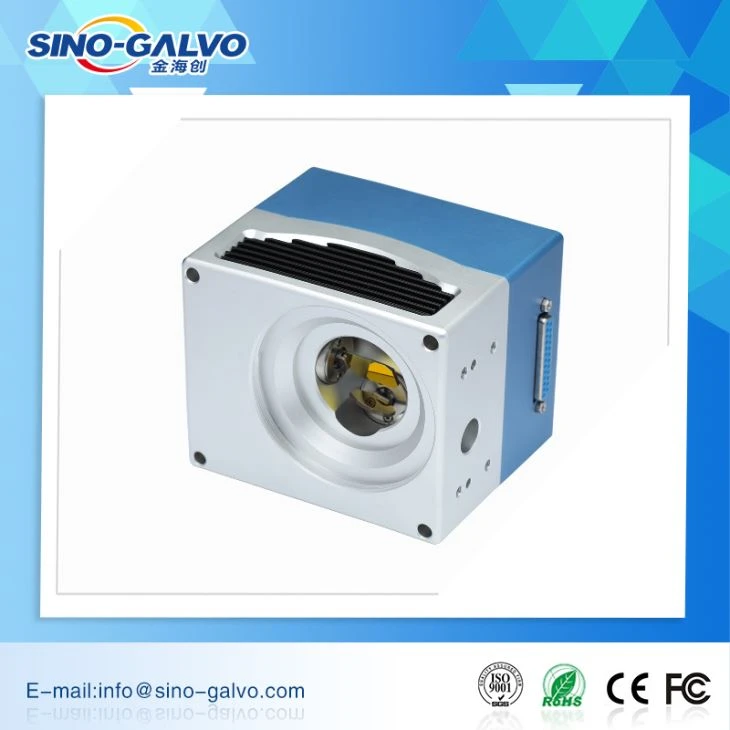

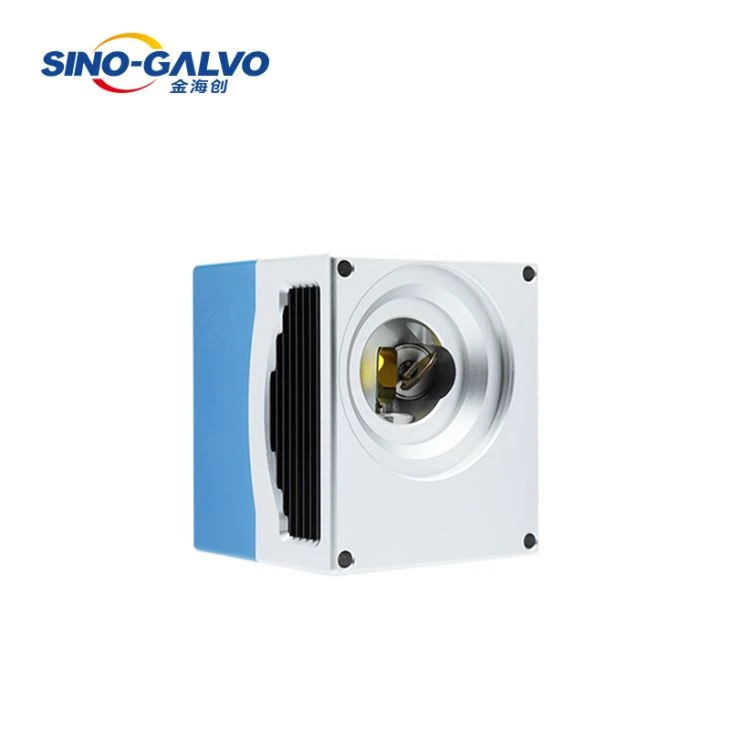

Model: SG7220-Plus
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Sliver&Blue
Product Size: 118.5×96.5×97.7mm
Gross Weight (Including wire and power supply): 3.1kg
Package Size: 29x23x14cm
Function & Application: Common marking, rotary marking, flying marking and other applications.
Parameter Details
Motor Specification
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.3ms |
RMS Current | 3A |
Peak Current | 15A(Max) |
Scan Angle | ±11° |
Storage Temperature | -10 to +60°C |
Input Aperture | 10.0mm |
Beam Displacement | 13.4mm |
Motor Weight | 220g |
Frequency | ≤1200Hz |
Why Choose US?
One-stop shopping for full series parts: As we are manufacturer of laser galvanometer scanner.
Full technical support: We have rich experience on producing laser galvanometer scanner, have full and good solutions for all exist problem in the production, free technical support can be provided to you.
Good price: We have already built long and close cooperation with all parts factory, so we can get better price from these factories.
Short lead time: Aim to keep continuous production, we have all of these in stock.
We will always warmly welcome you to our factory!
