Product Description
Model: JS1305

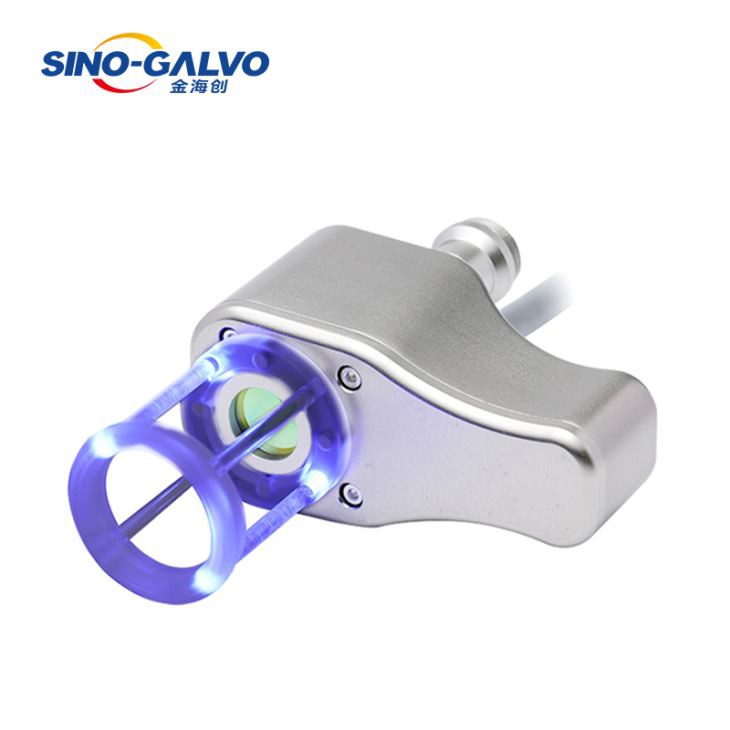

Product Name:CO2 beauty medical galvo scanner
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Silver
Product Size: 133.5x105mm
Gross Weight (Including laser control system): 150g
Package Size: 32x41x15cm
Function & Application
Fractional mode for face or body, it can remove wrinkle, scar, patch, acne, acne mark, stretch marks.
Private mode for vaginal tightening.
Pulse mode for minimally invasive surgery.
Product Advantages
1.The scanner hand-piece designing was adopted smaller size, light weight, especially suitable for ergonomic design hand-held laser system.
2.It was equipped with 2 high-performance mini motors, adopted the imported optical sensors to ensure high scanning speed and good stability.
3.With fault self-checking function, reliable error signal output can fully ensure the high security of the scanner.
4.With friendly software interface, parameter memory function.
5.With several preset operation modes, modular design, easy to operate.
6.Square, circle, triangle, Hexagon, straight line and other graphics are optional for scanning mode, the size of Axis X and Axis Y can be adjustable separately.
7.With image shoot and automatic outline extraction function, in combination with hand drawing and adjusting, provide more accurate treatment of object area.
8.With accurate scanning size, beam spot density, power controlling.
9.Laser power and indicator brightness can be calibrated.
10.Standardized cables connection interface, easy to connect with control system, and also we can provide customers with specially designed control system.
Parameter Details
Motor Specification
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.35ms |
Scale Drift | 40PPM/°C |
Zero Drift | <15μRad./°C |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2.0A |
Peak Current | 10A(Max) |
Maximum Scan Angle | ±15° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 5.0-7.0mm |
Motor Weight | 13.0g |
Frequency | ≤1000Hz |
Servo Driver Board Specification
Input Voltage MAX.RMS | ±15VDC |
Interface Signals Analog | ±5V，±10V |
Fault signal output(TTL level) | H is for galvanometer working normally, L for galvanometer failure |
Analog Signal Input Resistance | 200K±1% Ω |
Position Signal Input Resistance | 1K±1% Ω |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0-45°C |
Dimension(L×W×H) | 75×50 ×28mm |
What is the advantages compare to other galvo scanner?
The so called fault signal in the industry is not the real one, it only can reflect driver board receives signal out of range. When scanning motor and control system break down due to other reasons, galvo system can’t give fault protecting signal, let alone stop laser working. It is easy to cause accidents.
FAQ：
Q: What is Fault Signal function and significance?
A: Because of the high-end requirements from both domestic and foreign clients, our company developed the protection function for the medical fractional scanner system. The system can provide comprehensive security protection to the medical beauty devices during the therapeutic process. The fault signal is used to check whether the drive board can drive scanning motors to work normally, and the signal change can automatically check and determine whether the scanner is in good working condition.
The fault signal is TTL signal, it can be acquired easily by the control board of the medical fractional system. Thus, once the scanner occurs problem, the fault signal can stop the laser output immediately to avoid the medical accidents caused by excessive laser output on the skin, then greatly improve the safety and reliability of medical beauty devices operation.
Application:
