| Marking Area | 110*110 / 150*150 / 170*170 mm |
|---|---|
|
Laser Type |

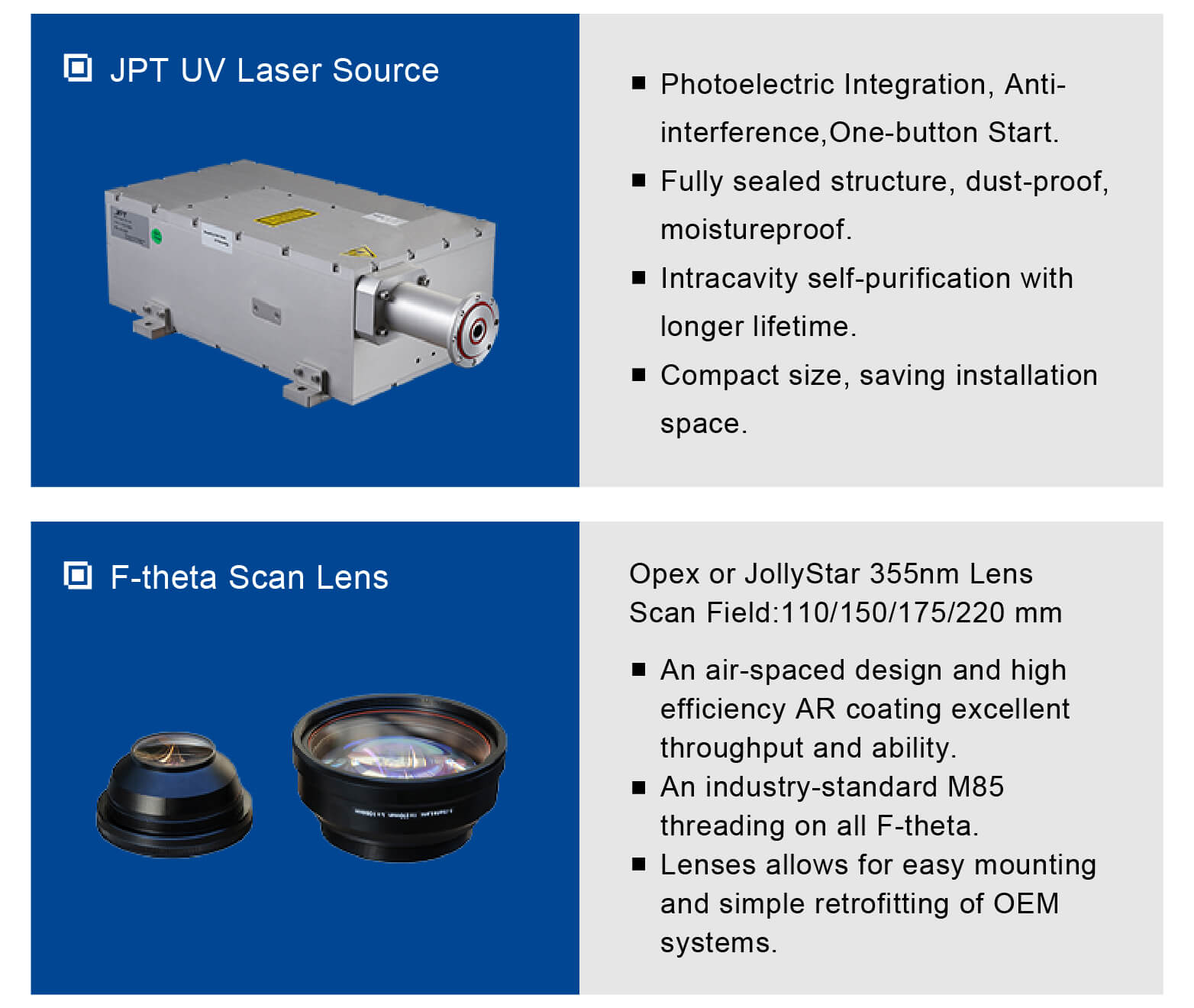

JPT 355nm UV Laser Source |
|
Average Power |
3w@30kHz / 5w@50kHz |
| Pulse Duration | 15ns@30kHz / 15ns@40kHz |
| Pulse Repetition Rate Range | 20kHz - 150kHz |
| Software | Ezcad 2(Compatible with Lightburn, Windows XP/Vista/7/8/10) |
| Beam Quality | M2＜1.2 |
| Beam Circularity | >90% |
| Beam Full Divergence Angle | ≤2 mrad |
| Beam Diameter | Non-expanding:0.55±0.15 mm |
| Min. Character | 0.15mm（Depends on the material) |
| Engraving Depth | ≤0.01-0.5mm |
| Min. Line Width | ≤0.01mm |
| Input Voltage | 110v-240v / 50-60Hz |
| Complete Power Consumption | ≤1500w |
| Cooling Method | Water-cooled by Water Chiller S&A CWUL-05 |
