With the rapid development of the laser cleaning industry, lasers are constantly moving towards miniaturization. Handheld and mobile laser cleaning equipment has made the use of laser cleaning technology more widespread. Most laser devices use laser galvanometer scanning on their laser heads to control the scanning range and speed during laser cleaning.

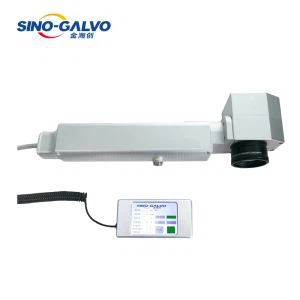

LC1403WD-V-2000 is a hand tool used in handheld laser cleaning machines.The whole system adopted the optimization designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.
The main functions include: Paint removal,oil removal,oxide layer removal,screw laser cleaning,tire mold cleaning,rust laser removing,laser welding seam clean.
The advantages of laser cleaning
With non-contact cleaning, no damage to base material.
Precise cleaning to realize selective cleaning of accurate location and precise size.
No need of chemical cleaning fluid, no consumables, safe and environmental friendly.
Double Axis & Vertical Light Output
Dual axis vertical light output mode,standard cleaning format: 100*20mm(Other formats can be customized)

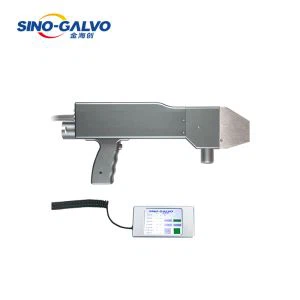

Handheld Scan Galvo Gun for Laser Cleaning
Maximum withstand power reaches continuous 2000 watts.The weight of the hand piece is only 1.7kg.
Laser Cleaning Control System
Unique laser cleaning software control system, clear and concise interface, easy to operate. All parameters can be set and adjusted according to the application to achieve control of laser source and galvanometer scanner.
Tire Mold Laser Cleaning
Professional laser cleaning optical design, selects a high power quartz lens, a field mirror with high transmit ability and large focal depth, and adds a water channel design to meet the long time operation of high power laser cleaning.
Products Description
|
Name |
Parameter |
|
Model |
LC1403WD-V-2000 |
|
Dimension |
302mm×76mm×117mm |
|
Light Emitting Mode |
Vertical |
|
Weight |
1.7±0.1Kg |
|
Cable Length(m) |
10m (Length is customizable) |
|
Input aperture |
12mm |
|
Standard cleaning format |
100*20mm(Other formats can be customized)
|
|
Mechanical Scan Angle |
±11° |
|
Linearity |
99.9% |
|
Repeatability |
＜8μRad |
|
Long-term Drift Over 8 Hours |
＜0.5mRad |
|
Scale Drift |
＜40PPM/℃ |
|
Zero Drift |
＜15μRad/℃ |
|
Small Step Response Time |
≤0.3ms |
|
Water temperature |
25±3℃ |
|
Maximum water pressure |
＜3bar |
|
Water flow |
>0.6L/min |
About Laser cleaning
Laser Cleaning -handheld Rust removal
Laser cleaning technology can indeed achieve non-destructive cleaning of various materials, thanks to its non-contact properties and highly controllable cleaning process. By precisely adjusting laser parameters such as wavelength, pulse width, energy density, etc., laser cleaning can effectively clean different pollutants and substrates while minimizing or completely avoiding damage to the substrate.
tires mold laser cleaning
Tire molds typically have complex concave convex surfaces and fine textures, and laser cleaning can precisely control the cleaning position, resulting in a more uniform and precise cleaning effect. And laser cleaning will not cause physical damage to the surface of the mold, ensuring the service life of the mold and avoiding the problem of residual chemical cleaning agents.
Laser cleaning in the aerospace field
The application of laser cleaning technology in the aerospace field is mainly reflected in the use of high-power laser cleaning systems, as well as its applications in aircraft component cleaning, rocket pre welding oxide film cleaning, and aviation engine blade cleaning.
laser cleaning before welding of lithium batteries
During the battery assembly process, laser cleaning technology is applied to the sealing nails, adapter pieces, module section bar pole, single cell blue film, single cell silicone, and single cell coating cleaning processes, effectively removing dirt and dust on each end face, preparing in advance for battery welding, and reducing welding defects.
