Sino-Galvo LC1410D-V-QCS laser rust removal gun for sale
Introducing the compact and light-weight Laser Rust Removal Gun, the ultimate solution for tackling rust and corrosion with unparalleled precision and efficiency. This tool combines advanced laser technology with ergonomic design, making it the go-to choice for work in small space.
Technical parameters
| LC1410D-V-QCS Galvo Scanner Parameter | |
| Laser Aperture | 10mm |
| Cleaning Field | 100*20mm (Other field is available to be customized） |
| Mechanical Scan Angle | ±11° |
| Precision and Error | |
| Linearity | 99.90% |
| Repeatability (RMS) | ＜8μRad |
| Long-term Drift Over 8 Hours | ＜0.5mRad |
| Scale Drift | ＜40PPM/℃ |
| Zero Drift | ＜15μRad/℃ |
| Setting Time | ≤0.3ms |
| Laser | |
| Laser options | QCS Laser |
| Power Range (Pulsed Laser) | ≤100W |
| Working Current,Temperature | |
| Rated Current | 2A |
| Working Temperature | 0℃~45℃ |
| Storage Temperature | -10℃~60℃ |
| Hand-piece Parameters | |
| Model | LC1410D-V-QCS |
| Dimension | 296mm×76.3mm×106mm |
| Light Ejecting Direction | Vertically |
| Weight | 0.7±0.1Kg |
| Cable Length(m) | 5 (Length is customizable) |

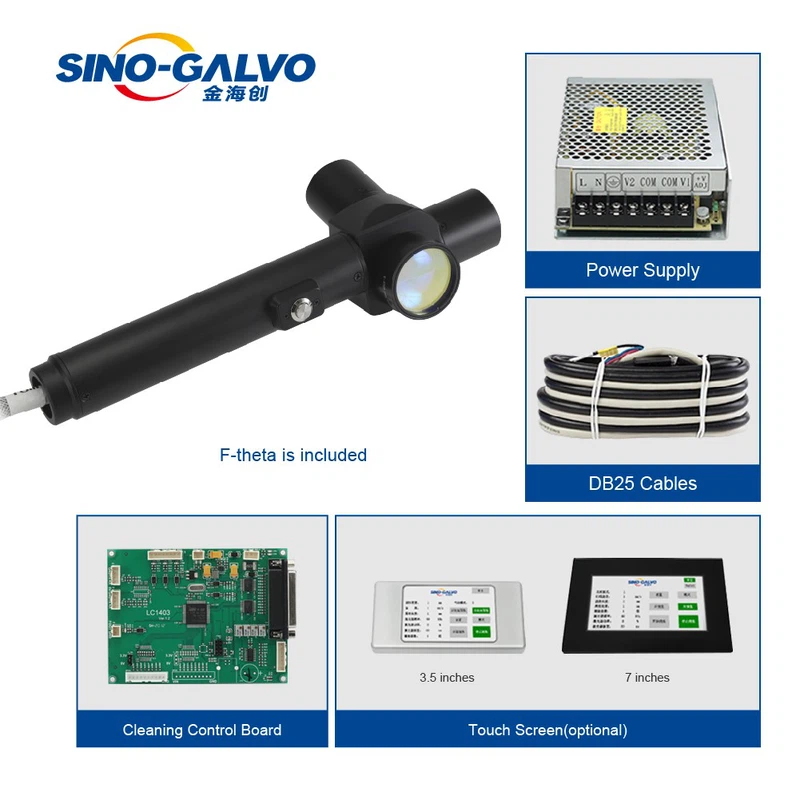

Configuration List
| Name | Specification | Quantity/Set |
| Power Supply | ±15V, 2A | 1 |
| Control Board | V1.2/1.3 | 1 |
| Screen | 3.5 inch / 7 inch optional | 1 |
| F-theta Lens | F=254mm | 1 |
| Hand Piece | LC1410D-V-QCS | 1 |
| Laser Connection | DB25 | 1 |
Key features
- High-Precision Laser Technology: Our rust removal gun utilizes advanced laser beams to target and eliminate rust with pinpoint accuracy, leaving the underlying surface intact.
- Ergonomic Design: Designed with user comfort in mind, the lightweight and ergonomic design of the gun ensures fatigue-free operation during extended use.
- Efficient and Time-Saving: Say goodbye to time-consuming manual rust removal methods. The Laser Rust Removal Gun dramatically reduces project timelines, allowing you to accomplish more in less time.
- Safe Operation: Equipped with safety features, including a protective galsses and automatic shut-off, the gun ensures safe operation for both professionals and hobbyists.
- Versatile Application: Suitable for use on a variety of surfaces, including metal, concrete, and more. Tackle rust on automotive parts, machinery, and household items with ease.
Unlock the power of precision with the Laser Rust Removal Gun. Invest in the future of rust removal technology and experience efficiency like never before.
Order yours today and rediscover the true beauty beneath the rust!
