Product Description
Model:JD2206a

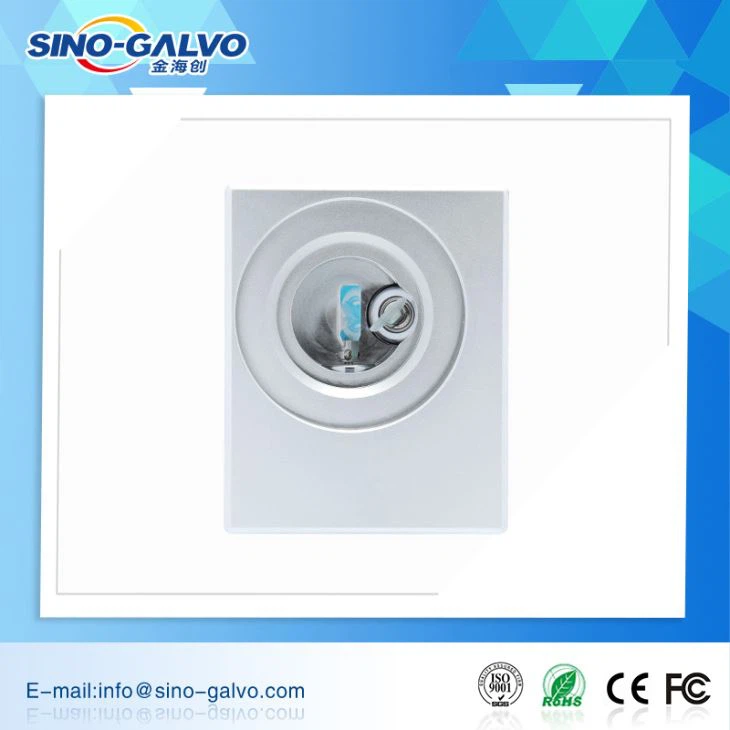

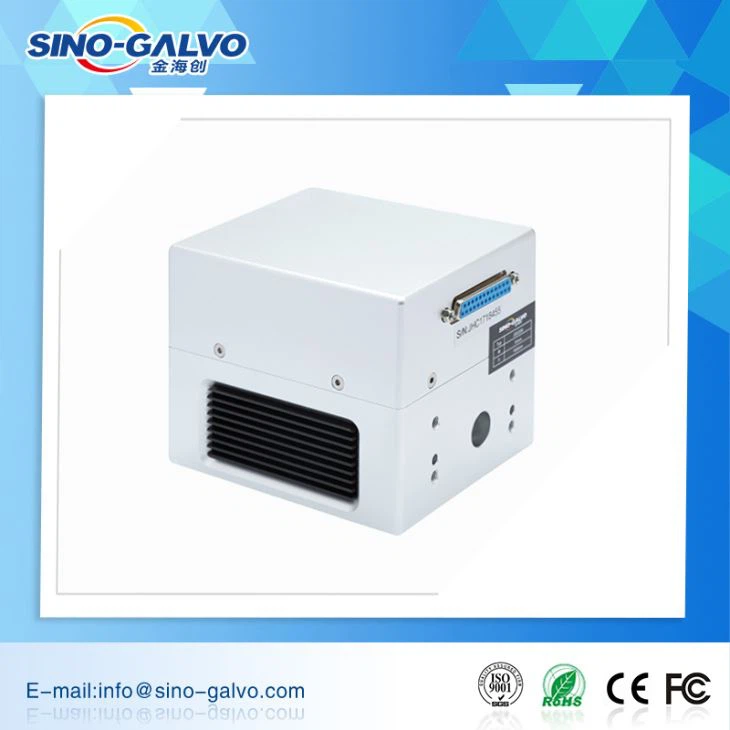

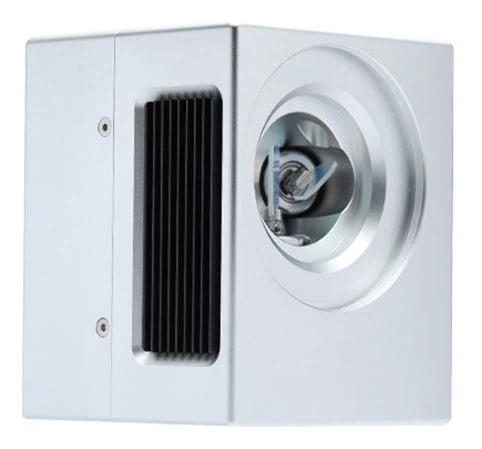

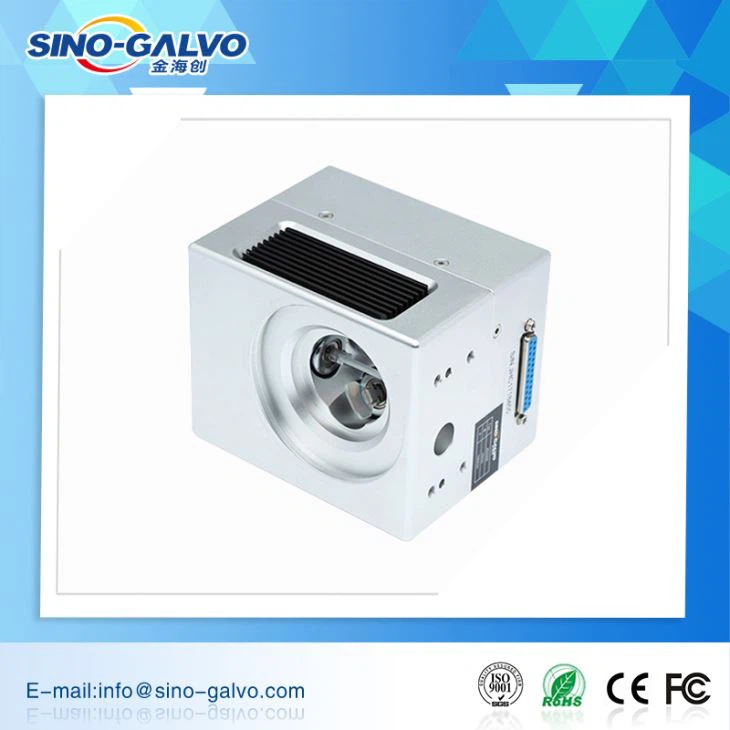

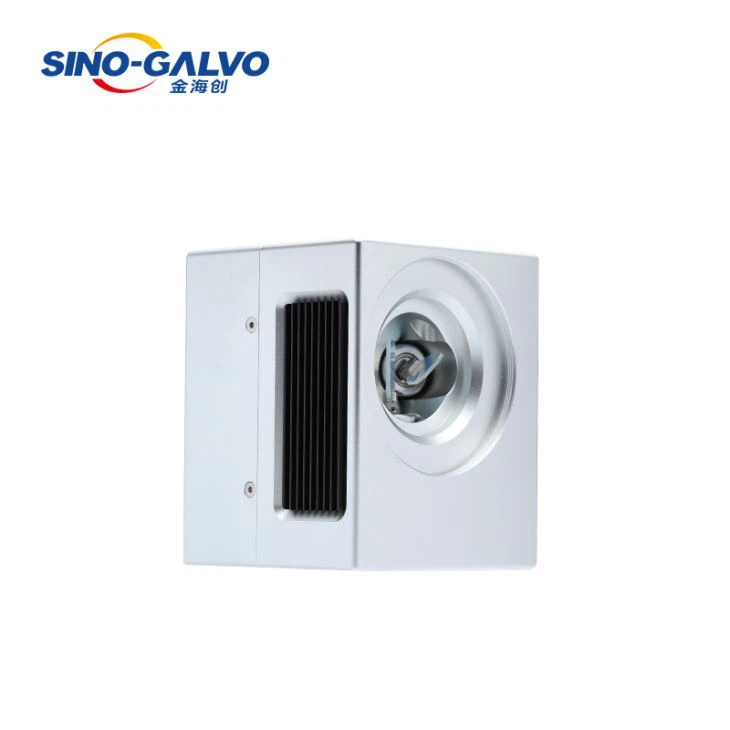

Product Name: co2 laser scan head
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Silver
Product Size: 96.5x94x118.5mm
Gross Weight (Including wire and power supply): 3.1kg
Package Size: 29x13x14cm
Function & Application: Common marking, rotary marking, flying marking and other applications.
Product Advantages:
1.10 mm input aperture, superior performance of zero drift, higher speed, smaller size
2.The most cost-effective high accuracy YAG galvo head.
3.The Motor Weight is 120g.
Parameter Details
Motor Specification of scan galvo laser:
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤ 0.35ms |
Scale Drift | < 40PPM/°C |
Zero Drift | < 15μRad./°C |
Long-term Drift Over 8 Hours | < 0.5mRad |
RMS Current | 2.0A |
Peak Current | 15A(Max) |
Scan Angle | ±11° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10.0mm |
Beam Displacement | 13.4mm |
Motor Weight | 120g |
Frequency | ≤1000Hz |
Servo Driver Board Specification of scan galvo laser:
Input Voltage | ±15VDC |
Interface Signals Digital | XY2-100 |
Position Signal Input Resistance | 1K±1% Ω |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0-45°C |
Dimension(L×W×H) | 75×50×28mm |
FAQ:
1.Q: Where is your factory located? How can I visit there?
A: We are located in Haidian District, Beijing, China. All our clients from home and abroad are warmly. Welcome to visit us.
2.Q: If there is any technical help after we receive the machine?
A: Yes, we have perfect after-sale service team to supply technical support to our customers. We have details English manual; We supply service through email, tel, online Skype etc; We can solve the problem through remote, photos and videos for instruction; If necessary we can send out technical person to your country.
3.Q: I want to do marking for the round object with this galvo scanner, like ring, is it ok?
A: Yes, no problem, equip a marking machine that use this galvo scanner with a rotary device, it will be ok.
