Product Description

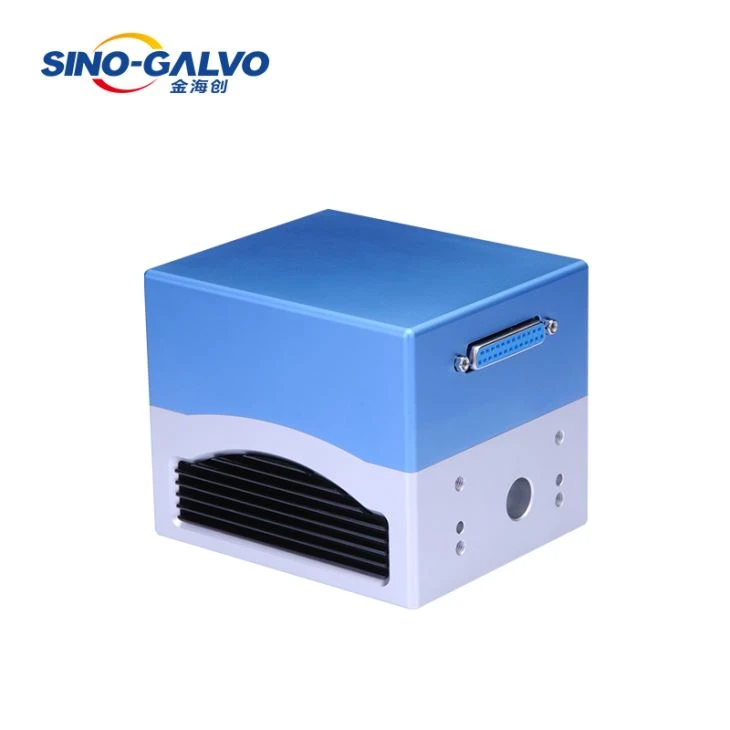

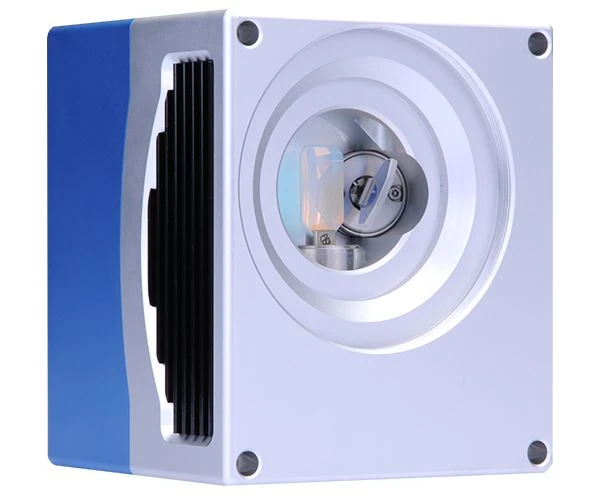

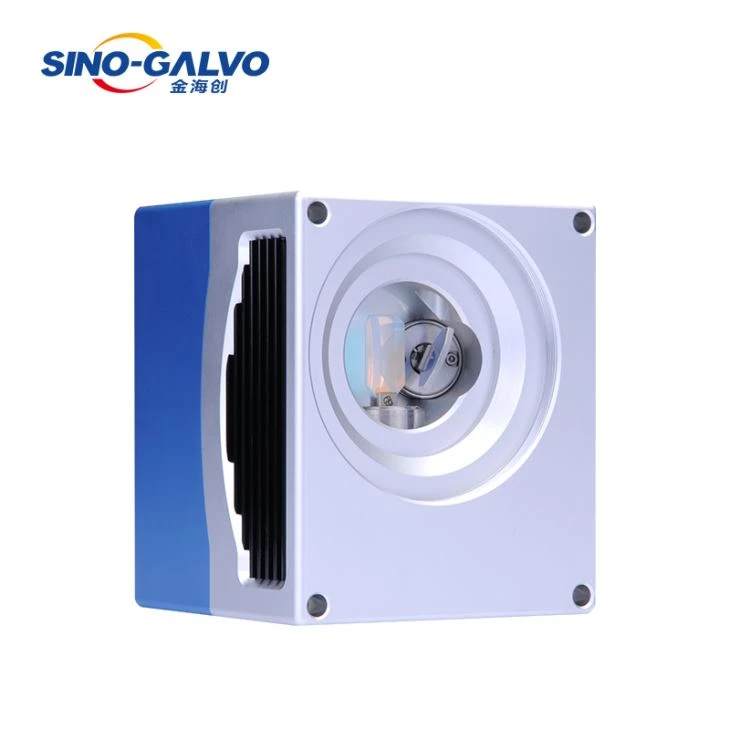

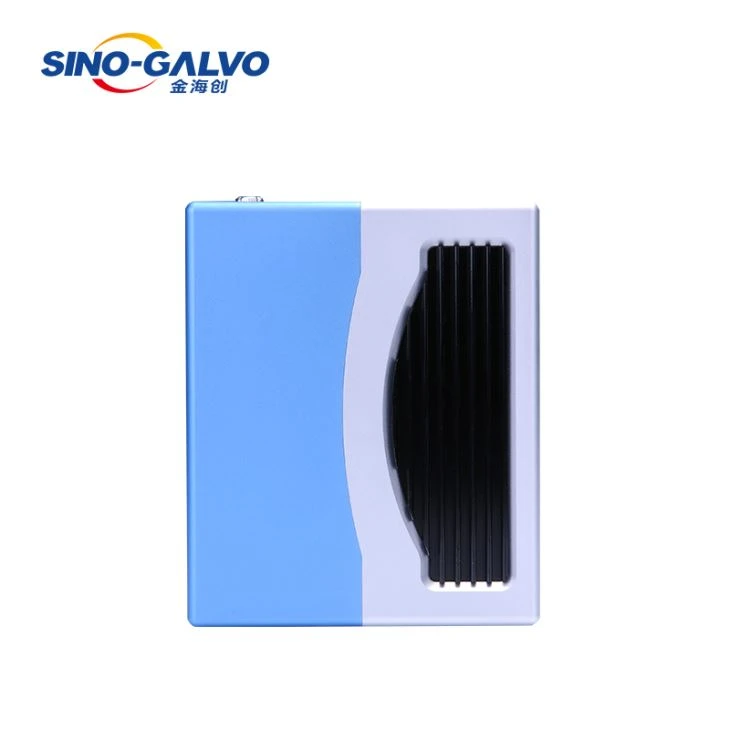

SG2203 high speed scanning galvanometer can lead 10mm light spot reflection lens.It entrance aperture is 10mm,broadly used in optical scanning,laser marking,drilling,micromachining and other industries.The optical scanning system has fast speed, low drift, high positioning accuracy and reliable operation stability and other characteristics, the performance has reached the leading domestic level. It is mainly used in optical fiber, YAG and CO2 lasers, It is usually used in high speed and online flight marking. This two-dimensional scanning galvanometer can choose different wavelengths, different power levels of lenses.
Quick Details
Condition:New
Warranty:1.5 years
Applicable Industries:Manufacturing Plant, Retail, YAG/CO2/fiber/355nm/532nm laser marking equipment
Place of Origin:China
Brand Name:SINO-GALVO
Certificate:CE, ROHS, FCC, REACH, ISO9001
Input Aperture:10.0mm
Signal:Digital/Analog
Color:Aluminum+Blue
Application:Laser Precision Marking
Machinery Scan Angle:±11°
Long-term Drift Over 8 Hours:<0.5mRad
Scale Drift:40PPM/℃
Zero Drift:<15μRad./℃
The advanced servo control algorithm and efficient optoelectronic sensing and positioning technology are use in the system to meet most application demands for the product performance and positioning accuracy.We guarantee the permanent stability of the system by our demanding material control,well-developed manufacture technologies,long-period drifting test and aging test.
Motors & Drive board technical parameters
Motor Specification
Working Temperature | 0-45℃ |
Linearity | 99.9% |
Setting Time | ≤ 0.35ms |
Scale Drift | <40PPM/℃ |
Zero Drift | <15μRad./℃ |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 2.0A |
Peak Current | 15A(Max) |
Maximum Scan Angle | ±15° |
Storage Temperature | -10 to +60℃ |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10.0mm |
Beam Displacement | 13.4mm |
Motor Weight | 120g |
Frequency | ≤1000Hz |
Servo Driver Board Specification
Input Voltage | ±15VDC |
Interface Signal Digital | XY2-100 |
Position Signal Input Resistance | 1KΩ±1% |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0-45℃ |
Dimension(L×W×H) | 75×50×28mm |
Sino-Galvo Tech. was founded in 2001, is a hi-tech enterprise that devotedly integrates R&D, manufacture and sales of galvo scanner as well as control systems for industrial and medical field. Due to endeavor by its 500+ working staff, Sino-Galvo, occupying an area of 54500㎡, has now made it to the biggest hi-performance galvo scanner production base of all. The product covers full series of galvo scanner with 3mm-50mm beam aperture, and our annual sales is above 300,000 units, while the repair rate is less than 1%.
If you have any questions, please contact our Technical s Department:
consulting hot-line: 400-055-8805
