Product Description
Model:RF8330-3D-1200

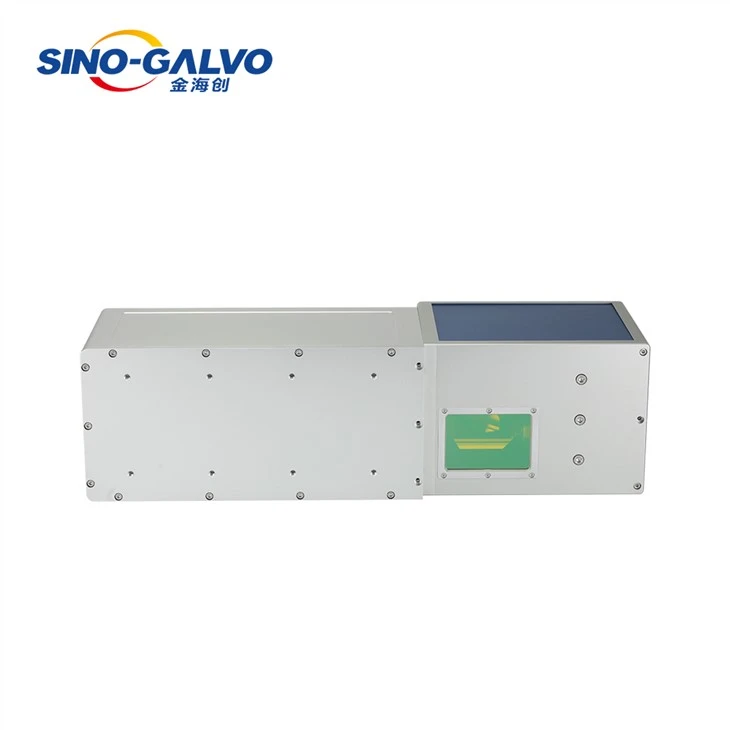

Product Name: laser cutter galvo scanner
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Silver & Blue
Product Size: 556.5×158×188mm
Gross Weight: ≈16.7Kg
Function & Application: 3D laser marking, laser engraving, laser embossing, laser welding and cutting.
Product Advantages
1. Suitable for a wide range of laser marking, cutting, welding, drilling, laser micromachining, 3D applications, laser rapid prototyping, etc.,
2. Can be used for processing leather, rubber, wood, bamboo, organic glass, ceramic tile, plastic, marble, jade, crystal , cloth and other nonmetallic materials.
3. 30mm beam input aperture: Scan field for 300, 400, 450,500, 600, 700, 800, 1200mm.
Parameter Details
Motor Specification of 3d dynamic focus laser galvo scanner for cnc:
Working Temperature | 0 ℃ -45 ℃ |
Linearity | 99.9% |
Marking Speed | 1000mm/s |
Scale Drift | <40PPM/ ℃ |
Zero Drift | <15μRad/ ℃ |
Long-term Drift over 8 hours | <0.5mRad |
Repeatability (RMS) | ＜8μRad |
Gain Error | ＜5mRad |
Machinery Scan Angle | ±12.5° |
Storage Temperature | -10 to +60 ℃ |
Step Response Time(1% of full scale) | 940us |
Step Response Time(10% of full scale) | 1500us |
X&Y Axes Mirrors Aperture Size | 30mm |
Galvanometer Scanner Weight | ≈16.7Kg |
Printing Field | 300×300mm~1200×1200mm |
Input Beam Size | 2.5~3mm |
Serve Driver Board Specification of 3d dynamic focus laser galvo scanner for cnc:
Input Voltage | ±24VDC |
Interface Signals | Digital XY2 -100 |
Working Temperature | 0 ℃ -45 ℃ |
Dimension(L×W×H) | 556.5×158×188mm |
FAQ:
1.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
2.Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3.Q: Could I send some samples to you for test? We want to know the marking quality before order?
A: Of course no problem, welcome to send some samples to us, and we will test it with our machine, then send the marked samples back to you for check.
