Sino-Galvo Handheld laser marking machine
- Technical Parameters
|
Machine parameters |
|
|
Laser type |
1064nm fiber laser |
|
Laser input aperture |
7mm |
|
Working field (Optional) |
70×70mm / 100×100mm |
|
Working speed |
10000mm/s |
|
Laser power |
20W/30W |
|
Machine material |
Engineering plastics |
|
Power supply |
100V-240V AC |
|
Maximum power consumption |
≤330W |
|
Cooling method |
Air cooling |
|
Operating system |
Linux |
|
Expansion port |
2 × USB3.0 |
|
Screen brightness |
400cd\m2 |
|
Supported file formats |
Vector files (DFX,PLT,SVG), QR code Image files (bmp , jpg, png ), barcode |
|
Machine size (L × W × H) |
345×272×222mm |
|
Handpiece weight |
≈ 0.9kg |
|
Overall machine weight (handpiece + cabinet ) |
≈ 9.7Kg |
|
Battery parameters ( Optional ) |
|
|
Battery capacity |
16AH |
|
Full charging time |
About 2.5H ( measured in 25 ℃) |
|
Usage time |
About 4H( measured in 25 ℃) |
- The characteristics of handheld laser marking machine
The system is equipped with the handheld scanning galvanometer, control board and operating software independently developed by our company, which can process metal materials such as stainless steel, carbon steel, aluminum, etc., which is convenient for multi-angle marking in narrow work scenes and is suitable for large equipment, On-site hand-held marking of heavy workpieces, such as large pipes, car frames, etc. The comprehensive performance indicators have reached international technical standards, and the specific characteristics are as follows:
- Precise positioning: The scanning galvanometer uses high performance motors and photoelectric sensing technology. The differential photoelectric sensor accurately detects the position of the motor rotor. It has good linearity, small drift, high resolution and repeatable positioning accuracy.
- Easy to move : Portable chassis, can be moved anytime and anywhere, the hand is light and convenient, and it is easy to operate.
- Stable performance: With the software developed by our company, the operation is stable and smooth.
- Humanized operation : Using touch screen control system, the operation is simple and easy to use, supports Chinese and English 2 Switch between languages and process multiple file formats such as QR codes and barcodes via USB .
- Wide range of applicable materials : suitable for common metals and alloys ( iron, copper, aluminum, magnesium, zinc and other metals ) , rare metals and alloys ( gold, silver, titanium ) , metal oxides , special surface treatment ( phosphating, aluminum anodization, electroplated surface ) and other materials.

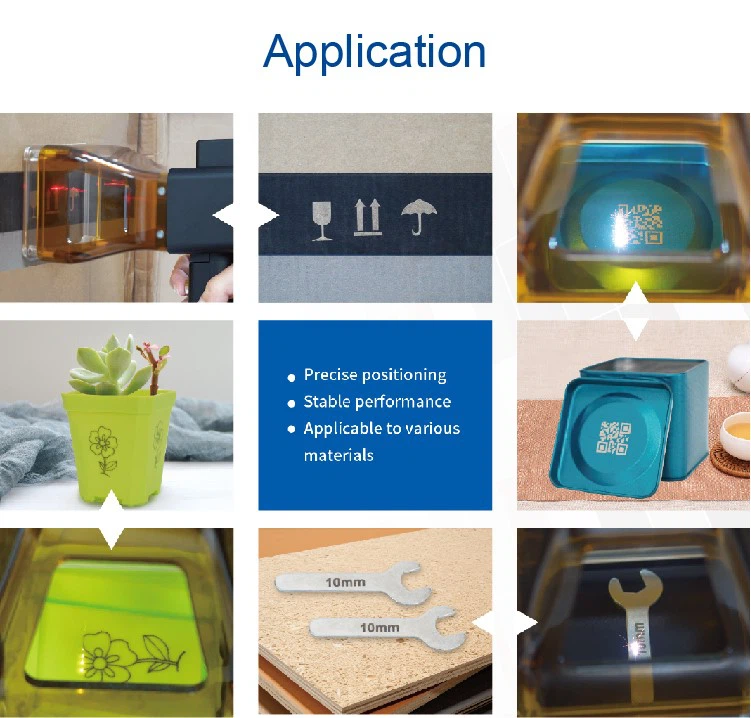

- Diverse application industries : widely used in electronic components, hardware tools, electrical products, daily consumer goods , sensors, auto parts, 3C Electronics, handicrafts, precision equipment, gift accessories, medical equipment, high and low voltage electrical appliances, sanitary ware industry, battery industry, IT industry and other fields.
- The steps of use SC1405-MCH portable handheld laser marking machine
