Product Description

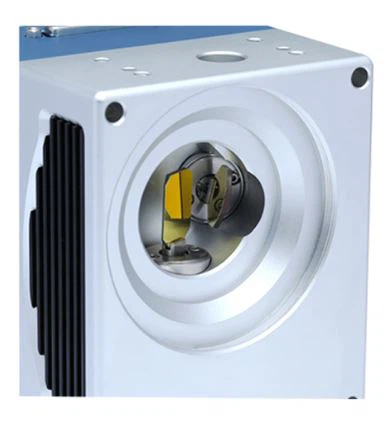

Model: SG7220-V1
Product Name: laser engraving galvo head
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Sliver&Blue
Product Size: 118.5×96.5×97.7mm
Gross Weight (Including wire and power supply): 3.1kg
Package Size: 29x23x14cm
Function & Application: Common marking, rotary marking, flying marking and other applications.
Product Advantages:
1.It is the highest cost-effective galvo scanner for laser marking system.
2.The input aperture is 10mm. It mainly used in high speed and marking on the fly.
3.It has a superior performance of zero drift, higher speed, lower temperature and stronger anti-interference.
Parameter Details
Motor Specification:
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.3ms |
Scale Drift | 40PPM/°C |
Zero Drift | <15μRad./°C |
Long-term Drift Over 8 Hours | <0.15mRad |
RMS Current | 3A |
Peak Current | 15A(Max) |
Scan Angle | ±11° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10.0mm |
Beam Displacement | 13.4mm |
Motor Weight | 220g |
Frequency | ≤1200Hz |
Servo Driver Board Specification:
Input Voltage MAX.RMS | ±15VDC |
Interface Signals Digital | XY2-100 |
Position Signal Input Resistance | 1K±1% Ω |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0-45°C |
Dimension(L×W×H) | 75×45×28mm |
FAQ:
1.Q: MOQ?
A: 1 set
2.Q: What kind of reflecting mirror support?
A: 1064nm, 10600nm, 532nm, 355nm, and other wavelengths.
3.Q: Delivery time?
A: Within 7 days after receiving your payment.
4.Q: How about the payment?
A:We support T/T, PayPal, Cash, Escrow and Western Union.
5.Q: How can you connect with us after purchased our products?
A: After purchased our products, if you have any questions, please contact our service hot-line: 86-10-62979055/62979755.
Application
Imaging Systems & Components
We offers a wide selection of laser scanning, widefield imaging, and OCT imaging systems, including multiphoton microscopes, confocal microscopes, whole-slide-scanning microscopes, electrophysiology rigs, swept-source OCT systems, and spectral-radar OCT systems, which widely used in applications ranging from imaging cells to studying physiological responses in awake and behaving animals.
