Products Description
SG8330-G galvanometer adopts all-aluminum integrated design with high sealing grade and strong adaptability to environment. At the same time, the water cooling circulation system is adopted to effectively control the working temperature of the galvanometer and ensure the whole machine to run continuously for a long time without failure. The specific characteristics are as follows:
■ The differential photoelectric sensor precisely detects the position of the motor rotor, with good linearity, low drift, high resolution and repeatable positioning accuracy.
■ For a 30mm lens, an accurate load design is carried out. The motor assembly has high precision, a reasonable structure, a small static friction coefficient and zero position offset, ensuring the best dynamic characteristics of the system.
■ A water-cooling structure is adopted to effectively control the working temperature of the mirror.
■ The driver has a function of leading-edge detection of position and speed, significantly improving the dynamic response performance and scanning speed of the entire system.
■ Overload, overcurrent and reverse connection protection are designed, making the system operation more reliable.
■ The entire system adopts an electromagnetic compatibility optimization design, with high signal-to-noise ratio and strong anti-interference ability.
■ It solves common problems such as temperature drift of the mirror motor, signal interference and zero position drift.
SG8330-G Technical Parameters
|
Speed |
|
|
Marking Speed(1) |
5000mm/s |
|
Writing Speed(2) |
275cps |
|
Step Response Time(1% of full scale) |
940μs |
|
Step Response Time(10% of full scale) |
1500μs |
|
Tracking Error Time |
≤440μs |
|
Precision and Error |
|
|
Linearity |
99.9% |
|
Repeatability (RMS) |
＜8μRad |
|
Gain Error |
＜5mRad |
|
Zero Offset |
＜5mRad |
|
Long-term Drift Over 8 Hours |
＜0.5mRad |
|
Scale Drift |
＜40PPM/℃ |
|
Zero Drift |
＜15μRad/℃ |
|
Wavelength Options(3) |
10600nm/1064nm/355nm |
|
Water cooling control |
|
|
Water temperature |
25±3℃ |
|
Maximum water pressure |
＜3bar |
|
Flow rate |
>1L/min |
|
Water pipe specification |
Outer diameterφ6mm, Inside diameφ4mm |
|
Power and Signal |
|
|
Input Voltage |
±24VDC |
|
Rated Current |
4A |
|
Interface protocol |
XY2-100 |
|
Mechanical scanning Angle(4) |
±12.5° |
|
Working Current, Temperature, Dimension |
|
|
Working Temperature |
0℃--45℃ |
|
Storage Temperature |
-10℃--60℃ |
|
Aperture |
30mm |
|

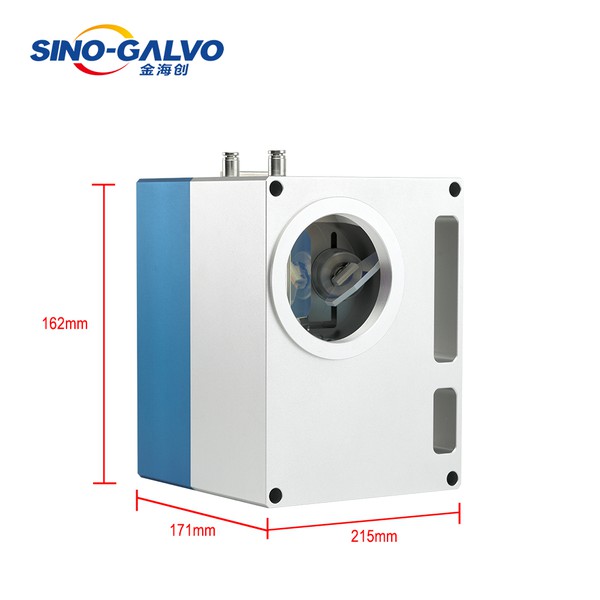

Galvanometer Scanner Dimension (LxWxH) |
215x171x162mm |
|
Galvanometer Scanner Weight |
≈7.87Kg |
Note: The above data are tested after 30 min warm-up
(1) With F-theta objective, F=160mm, marking 2mm height single character
(2) With F-theta objective, F=160mm, marking 1mm height single character per second
(3) Special wavelength coating film can be customized
(4)The standard mechanical scanning angle is ±12.5°. Other special requirement is available to be customized.
