Product Description

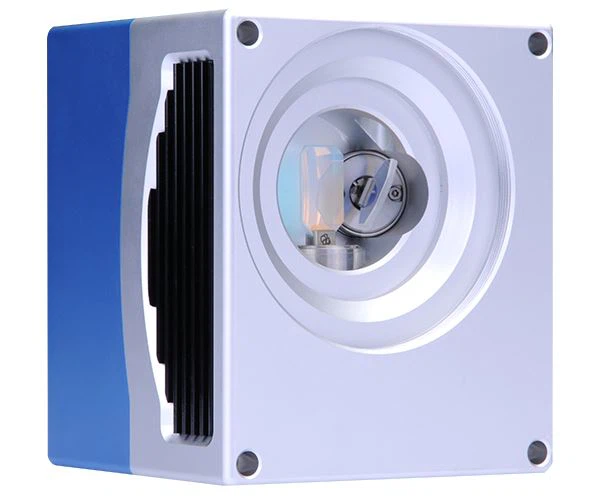

Model:JD2203
Product Name: High Performance Optical Scanner Head
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Sliver & Blue
Gross Weight (Including wire and power supply): 1.58kg
Function & Application: Common marking, rotary marking, flying marking and other applications.
Product Advantages
1. Adopted the photoelectric sensors which imported from America, and owned the proprietary intellectual property rights.
2. The input aperture is 10 mm.
3. Design of overload, over-current and reverse connect protection, makes the system running more reliable.
Motor Specification of JD2203:
Working Temperature | 0-45°C |
Linearity | 99.9% |
Setting Time | ≤0.35ms |
Scale Drift | 40PPM/°C |
Zero Drift | <15μRad./°C |
Long-term Drift Over 8 Hours | <0.5mRad |
RMS Current | 3.0A |
Peak Current | 15A(Max) |
Scan Angle | ±11° |
Storage Temperature | -10 to +60°C |
Resolution | 12μrad |
Repeatability | 8μrad |
Input Aperture | 10.0mm |
Beam Displacement | 13.4mm |
Motor Weight | 120g |
Frequency | ≤1000Hz |
Servo Driver Board Specification of JD2203:
Input Voltage MAX.RMS | ±15VDC |
Interface Signals Digital | XY2-100 |
Position Signal Input Resistance | 1K±1% Ω |
Position Signal Input Scale Factor | 0.5V/° |
Position Signal Output Scale Factor | 0.5V/° |
Working Temperature | 0-45°C |
Dimension(L×W×H) | 75×55×30mm |
FAQ:
1.Q: System has no any reactions?
A: Check if the power supply is connected well.
2.Q: Scan motor swings lightly after turning on?
A: Check the interference sources and the input signal circuit.
3.Q: Mirror reflection power is weak?
A: Align the light path of the marking machine; If the light path is normal, please contact us.
Special Notice:
Before starting up the whole system, please check carefully to confirm whether there is any problems, such as: plug virtual connection or without connection, two mirrors touched with each other, drive board signal input errors, etc. Only after finishing all checking, then you can turn on the power supply.
