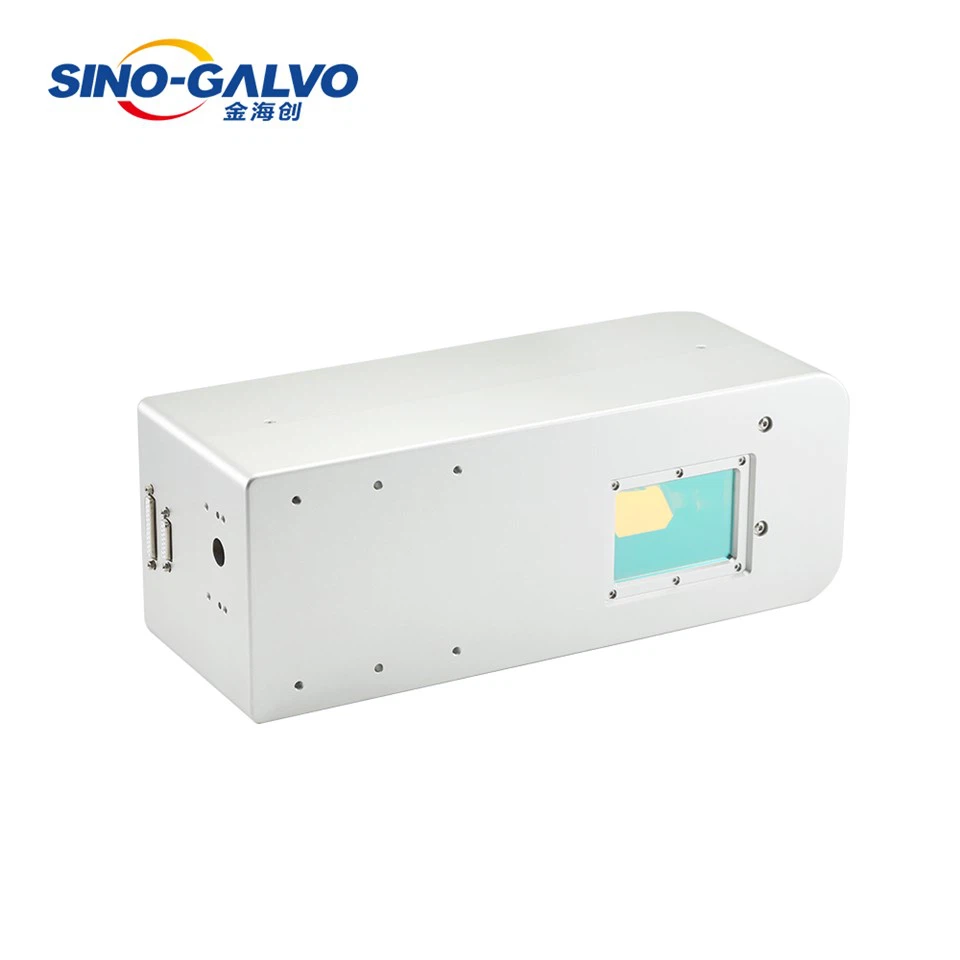

The RF8220-3D-400 dynamic focus scanning system is suitable for a wide range of laser marking, cutting, laser micromachining, 3D applications, laser rapid prototyping, etc. , cloth and other non-metallic materials for processing. Good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, high precision marking line, no deformation, uniform power, no distortion of pattern in the dynamic marking process, comprehensive performance index reached the international leading level in the field.

■ Adopt photoelectric sensing technology and PDM control method, combined with the R&D technology of the Ministry of Aerospace and the production technology of vehicle-level.

■ Adopt advanced optical design scheme, small light loss, small size, high positioning accuracy, fast marking speed, strong anti-interference ability, etc. It is suitable for laser fine processing such as plane, complex curved surface and deep engraving.

■ Adopt MM3D software system, support a variety of file formats and import vector graphics, bitmaps and text barcodes, easy to understand, easy to operate, easy to use.

■ The maximum size of marking is 400×400mm, and any size from 200×200mm to 400×400mm can be customized according to requirements.

■ Precise load design for 20mm spot lens, high motor assembly precision, reasonable structure, small static friction coefficient and zero offset, to ensure good dynamic characteristics of the system.

■ The driver has the function of position and speed advance detection, which greatly improves the dynamic response performance and scanning speed of the whole system.

■ Solve common problems such as galvanometer motor temperature drift, signal interference and zero drift.

Example of format, working distance and focus spot configuration:
