Advanced Fiber Dynamic Focusing Scanning System

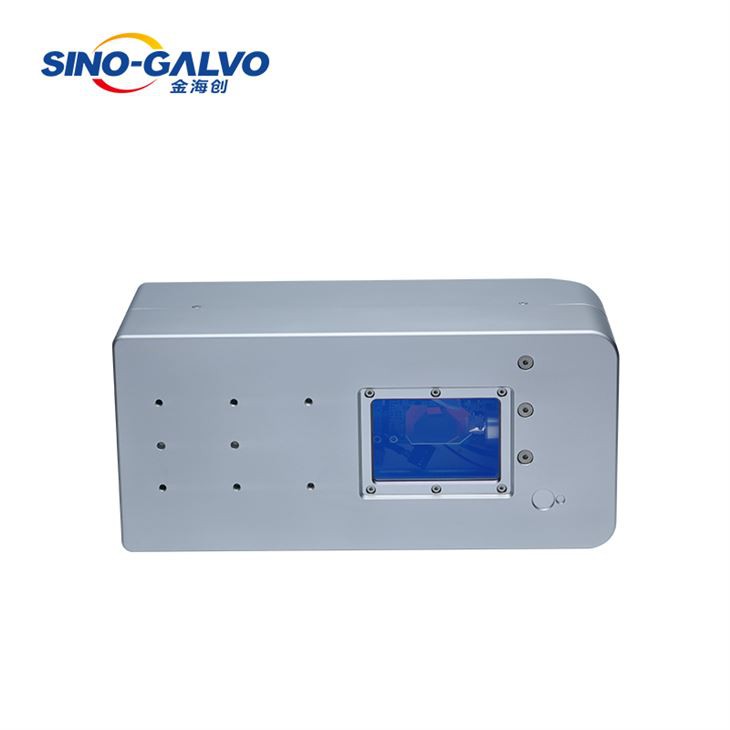

FL8220-3D-500 Dynamic Focusing Scanning System was developed for marking in large scan field and small focal spot, integrated the functions of data acquisition, data processing, electronic control, mechanical servo, optical imaging, optical compensation, and optical scanning, etc. It was adopted the integral structure, which is compact and well-sealed, ensuring the stability of the long-time work condition.

FL8220-3D-500 Dynamic Focusing Scanning System is suitable for a wide range of laser processing.

FL8220-3D-500 is suitable to process on metal for laser marking, cutting, welding, drilling, laser micro-machining, 3D applications, laser rapid prototyping, etc.

It has compact design, high positioning accuracy, higher marking speed, and strong anti-interference ability. In the process of dynamic marking, the marking line has high precision, distortion free, power uniform; pattern without distortion, the overall performance has reached the international leading level in the field. The advantages are as following:

■ Adopted advanced optical design scheme, it is characterized by small light loss, small volume, high positioning accuracy, fast marking speed and strong anti-interference ability, etc. It is suitable for laser fine processing of various large surface, complex surface and deep carving.

■ High speed system, meets above 1500mm/s precision hatch speed.

■ Maximum scan field up to 500x500mm, meets large scan field engraving requirements, according to customer requirement 400x400mm is optional.

■ Maximum marking height up to 80mm to meet customer's demand for large gap.

■ Precisely control the focal length position of laser marking machine, automatically adjust Z-axis for 3D deep marking process, keep the spot size to minimum, ensure the uniform graphic effect after marking on the object.

■ Adopted MM3D/Marking Mate 3D software system to support various file formats, vector, bitmap and text bar code import, which is easy to learn and operate.

■ Built-in concave and convex circular tube, concave and convex sphere, slope, cone, polygon and other basic models, the operator can easily and rapidly set the marking.

■ 3D models can be imported; 2D graphics can be directly cladded or projected on built-in curve surface.

■ The whole system adopted the optimization designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.

Application

Propelled fiber dynamic centering filtering framework, which embraces three-hub intergration structure, little size, enormous output field, little central apot size, uniform force, checking picture without bending, max stamping zone 1200x1200mm.

FL8220-3D-500 Technical Parameters
