Product Description
Model:SG2207-3D

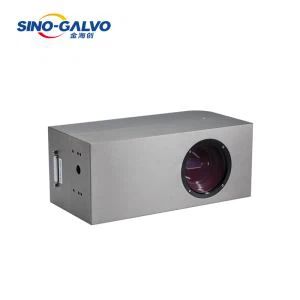

Product Name: Dynamic Focusing Galvo Scanner Head
Material of outer holder: Aluminum Alloy
Color Of Outer holder: Black
Product Size: 116X110X262mm
Gross Weight: 7.5kg
Package Size: 34X24X36cm
Function & Application: 3D laser marking, laser engraving, laser embossing, laser welding and cutting.
Product Advantages
1.The advanced small focal spot design, the minimum focal spot is 24um.
2.Accurate optical path design and fabrication, low energy decrement for large scan field and curved surface processing.
3.High speed system, meets above 3000mm/s precision hatch speed.
4.Scan field up to 300x300mm, meet large scan field engraving requirements.
5.The maximum marking height up to 130mm, far exceed the industry height standard of 80mm.
6.The focal axis position is optimized for deep engraving, suitable for embossment, etc 3D applications.
Parameter Details
Motor Specification
Working Temperature | 0 ℃ -45 ℃ |
Linearity | 99.9% |
Setting Time | ≤0.3ms |
Scale Drift | <40PPM/ ℃ |
Zero Drift | <15μRad./ ℃ |
Long-term Drift over 8 hours | <0.5mRad. |
RMS Current | 2.0A |
Peak Current | 15A |
Maximum Scan Angle | ±15° |
Storage Temperature | -10 to +60 ℃ |
Resolution | 12μRad |
Repeatability | 8μRad |
Input Aperture | 10mm |
Motor Weight | 220g |
Frequency | ≤1200Hz |
Beam Displacement | 13.4mm |
Serve Driver Board Specification
Input Voltage | ±24VDC |
Interface Signals | Digital XY 2 -100 |
Position Signal Input Resistance | 1KΩ±1% |
Position Signal Input Scale Factor | 0.33V/° |
Position Signal Output Scale Factor | 0.33V/° |
Working Temperature | 0 ℃ -45 ℃ |
Dimension(L×W×H) | 75×50×28mm |
FAQ:
1.Q: Mirror reflection power is weak?
Reason: Light path is not aligned well
Solution: Align the light path of the marking machine; If the light path is normal, please contact us.
2.Q: Marking graphics becomes one straight line?
Reason: One motor can not move normally
Solutions: Checking the wiring connection between the motors, drive boards and control board
3.Q: Waves exist in the marking line?
Reason:Grounding problems/Surrounded by strong interference sources/The Anti-interference ability of marking control board is poor
Solutions: Check if the ground connection is well/Check if there is a strong interference source surrounded/Check the position control signal of marking control board
