Galvo Laser Scanning Kits

Sino- Galvo tech is the largest galvo scanner manufacturer in the world. We provide OEM&ODM laser scanning system for laser marking/Lidar/OCT/laser cleaning/laser welding/ect.

Send Inquiry

Product Introduction

Why Choose Us

Products Description

Product Parameters

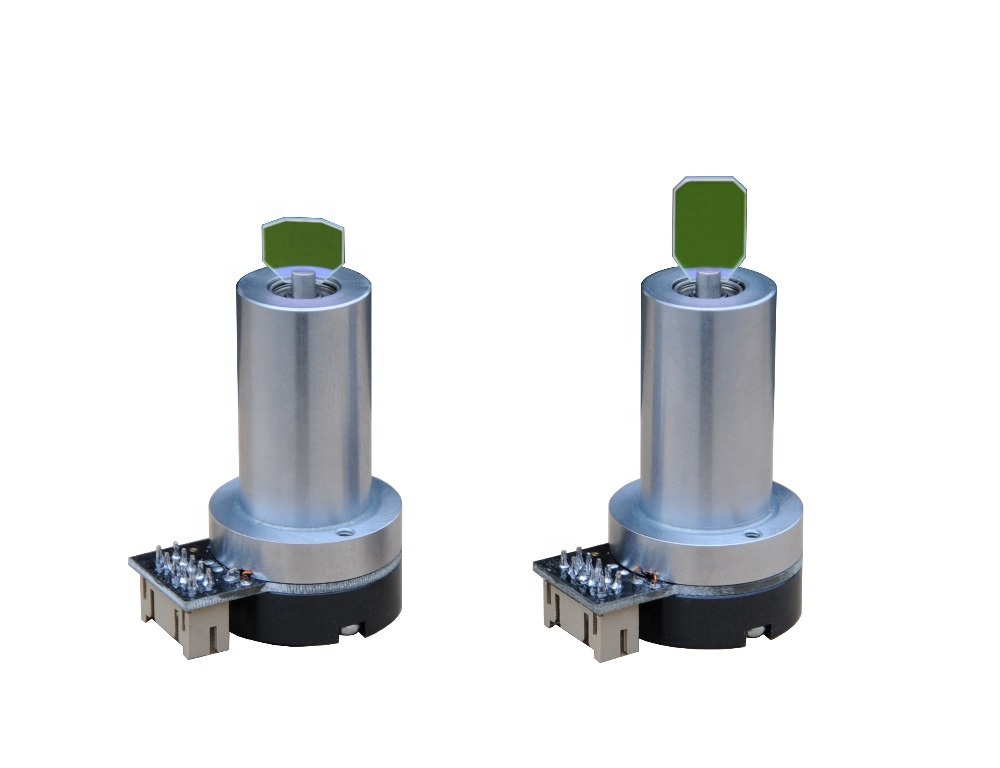

Motor Specifications of 3D Laser Printer Galvanometer Scanner

Working Temperature	0-45℃
Linearity	99.9%
Setting Time	≤0.35ms
Scale Drift	40PPM/℃
Zero Drift	<15μRad./℃
Long-term Drift Over 8 Hours	<0.5mRad
RMS Current	2.0A
Peak Current	10A
Maximum Scan Angle	±15°
Storage Temperature	-10 to +60℃
Resolution	12μrad
Repeatability	8μrad
Input Aperture	5.0-7.0mm
Beam Displacement	10.7mm
Motor Weight	52g
Frequency	≤1000Hz
