Product Description

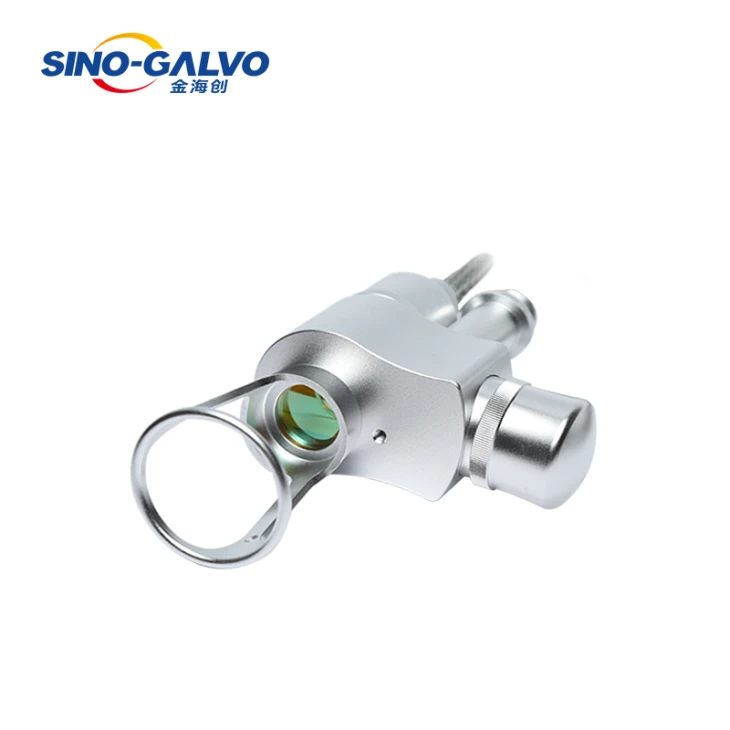

JS1105 Medical Galvanometer Scanner is a new generation of medical and beauty galvanometer system which is mainly used in fractional laser system. It uses a combination of modular design, and achieves the functions of interface display, parameter settings and scanning control for whole system. It is equipped with multiple communication interfaces with other systems. This product has won the national invention patents,with small and powerful software. And the system has three parts including man-machine, the hand-held scanner and scanning control board.
Quick Details
Place of Origin:Jiangsu, China (Mainland)
Brand Name:SINO-GALVO
Model Number:JS1105
Application:Medical beauty
Wavelength:10600nm
Input Aperture:7mm
Beam Displacement:10.7mm
Material:Aluminum
Warranty:18 Months
Certificates:CE;ROHS;ISO
Style:Portable
Feature:Skin Tightening, Tattoo Removal, Wrinkle Remover
Advantages
1. The scanner hand piece designing was adopted the unique vertically into the light structure, only weights 290g,
2. The operation is flexible and convenient;
3. Specially self-developed F-theta lens for 1550nm laser source, the laser beam input directly without beam expander, the uniformity of scanning point is very fine in the marking plane,the minimum beam diameter can reach 0.1mm;
4. It is adopted the world's smallest scanning motors, the photoelectric sensors is imported from America, only weighs 13g, the marking speed is two times faster than common scanners, the setting time reaches 0.35ms.
5. The Driving system adopted the control method of Germany galvo scanners, two motors are centralized controlled by only one drive board, the performance is stable, reliable and high accuracy.
6. Allprecision electronic components are imported from abroad;
7. The control board are designed with good electromagnetic compatibility, stronger anti-interference ability, can effectively prevent the motherboard damage caused by external input error signals or power supply.
8. This model has the self-inspection and protection signal output function.
9. It will output the protection signal within 0.1ms when the scanner working abnormal, to shut down the laser power supply thereby effectively to prevent medical accidents.
